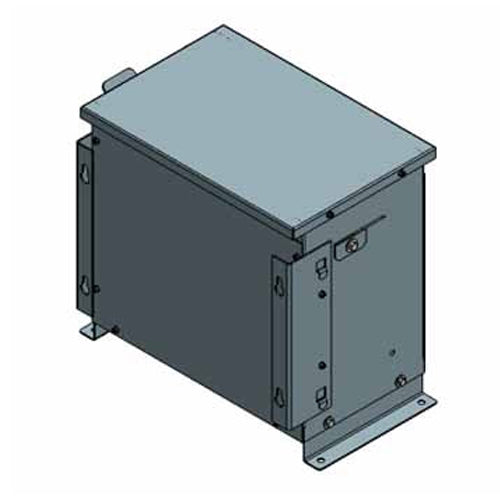

Electric Power 75MR7A1N1T0, 75KVA, General Purpose Auto Transformer, 3 Phase, Primary 600V Wye, Secondary 480V Wye, Copper
Regular price
$3,988.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
75KVA, Spec No. 75MR7A1N1T0. Primary 600V Wye, Secondary 480V Wye, 60Hz, 3 Phase, 3 Coils, Auto Type Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 14.4 (Depth) |
| Width (in) | 25.1 |
| Height (in) | 20.3 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V Wye |
| Secondary Voltage | 480V Wye |
| Wattage (w) | 75KVA |
| Material | Copper |
| Type | Auto Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 230 |
| UL Listed | CSA Listed |
| Warranty | 2-Year |
