Electric Power 7L4S6ABN1T0, 7kVA, Auto Transformer, 3 Phase, Primary 208Y, Secondary 220Y, Copper
Regular price
$1,645.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

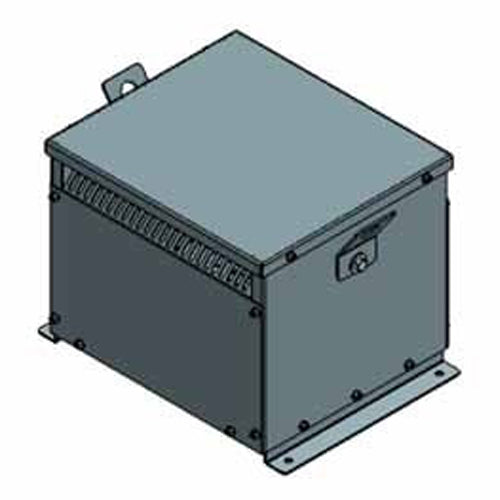

7KVA, Spec No. 7L4S6ABN1T0. Primary 208V Wye, Secondary 2200V Wye, 60Hz, Three Phase, 3 Coils, Auto Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 14.6 (Depth) |
| Width (in) | 17.2 |
| Height (in) | 14.8 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 208V 60Hz Wye |
| Secondary Voltage | 220V 60Hz Wye |
| Wattage (w) | 7KVA |
| Material | Copper Winding |
| Type | Auto Type Transformer, If there is no Neutral at Primary 208V side, there should be no Neutral at Secondary 220V side, please be advised. |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 75 |
| UL Listed | CSA Listed |
| Warranty | 2-Year |
