Electric Power 8K5P3BBN1T0, 8KVA, General Purpose Auto Transformer, 1 Phase, Primary 600V, Secondary 208V, Copper
Regular price
$1,195.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

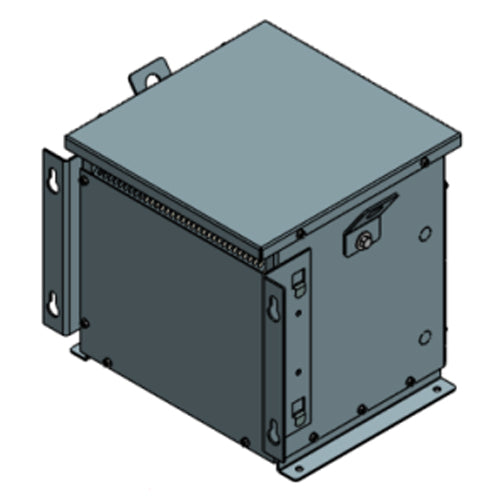

8kVA, Spec No. 8K5P3BBN1T0. Primary 600V, Secondary 208V, 60Hz, Single Phase, 1 Coil, Auto Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 14.6 (Depth) |
| Width (in) | 17.2 |
| Height (in) | 14.8 |
| Winding Material | Copper / Cu |
| Phase | Single Phase |
| First Voltage | 600V 60Hz |
| Secondary Voltage | 208V |
| Wattage (w) | 8KVA |
| Material | CU |
| Type | Auto Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 75 |
| UL Listed | CSA Listed |
| Warranty | 2-Year |
