Home » Enedo Royal Living Energy RSLD035-12A, Constant Current LED Driver, Output 14.7W 350mA 31.5-42Vdc, 0-10V Dimming, IP64, Input 120-277Vac
Enedo

Enedo Royal Living Energy RSLD035-12A, Constant Current LED Driver, Output 14.7W 350mA 31.5-42Vdc, 0-10V Dimming, IP64, Input 120-277Vac

In stock
SKU: RSLD035-12A
$54.99
Rated voltage
Power

Use this text to encourage communication or promote sharing on social networks.

You can also add links

STRATO switch mode driver technology is designed to generate one constant current output from a wide range AC input. The size and performance of these products make them the ideal choice for LED lighting applications.
  • Wide Range Input: 120, 240, or 277 VAC
  • Constant Current Output for Powering LEDs Directly
  • High Efficiency ~90%
  • Compact Design
  • Adjustable Output Current Settings

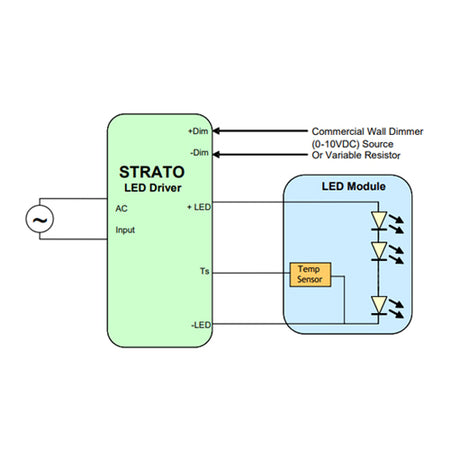

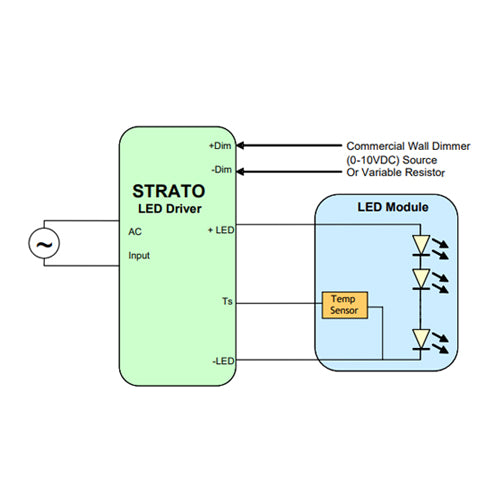

  • Dimmable with (0-10VDC) Input
  • Temperature Protection for LEDs
  • Convection Cooled
  • Long Life
  • Wide Temperature Range
  • ROHS Compliant
Stock Code RSLD035-12A
Family Enedo STRATO LED Drivers
Ballast Type Constant Current
Dimmable Yes
Length 70 mm / 2.76 in
Width 40 mm / 1.57 in
Height 29.5 mm / 1.16 in
Input Voltage 120-277Vac
Bulb Type LED
Housing Plastic Case
IP Rating IP64
Output Voltage 31.5-42Vdc
Output Current 350mA
Output Power 14.7 W
Power Factor >0.9
Start Temperature -30°C~90°C
Weight 142 g (5 oz)
UL Listed cRUus, CE, FCC
