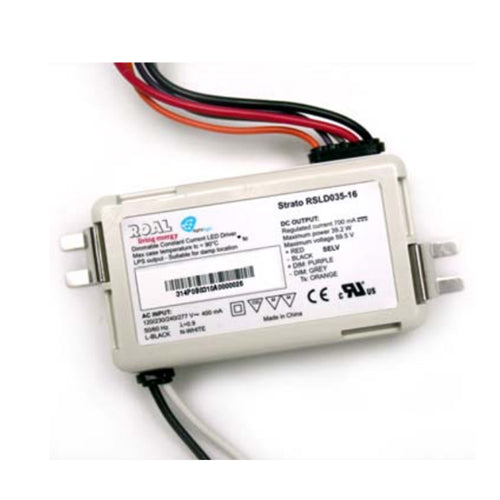

Enedo Royal Living Energy RSLD035-16, Constant Current LED Driver, Output 39.2W 700mA 40-56Vdc, 0-10V Dimming, IP64, Input 120-277Vac
Regular price
$60.26
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
STRATO switch mode driver technology is designed to generate one constant current output from a wide range AC input. The size and performance of these products make them the ideal choice for LED lighting applications.
- Wide Range Input: 120, 240, or 277 VAC
- Constant Current Output for Powering LEDs Directly
- High Efficiency ~90%
- Compact Design
- Adjustable Output Current Settings

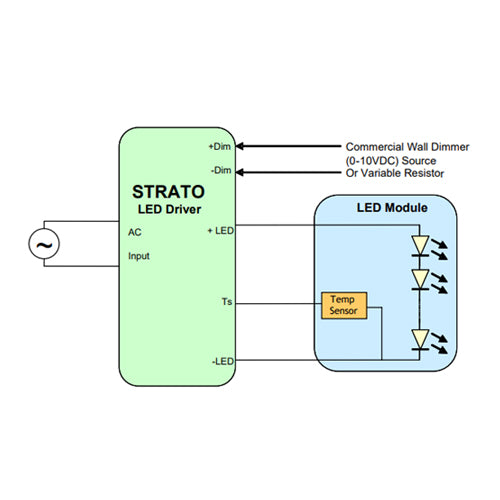

- Dimmable with (0-10VDC) Input
- Temperature Protection for LEDs
- Convection Cooled
- Long Life
- Wide Temperature Range
- ROHS Compliant
| Stock Code | RSLD035-16 |
| Family | Enedo STRATO LED Drivers |
| Ballast Type | Constant Current |
| Dimmable | Yes |
| Length | 70 mm / 2.76 in |
| Width | 40 mm / 1.57 in |
| Height | 29.5 mm / 1.16 in |
| Input Voltage | 120-277Vac |
| Bulb Type | LED |
| Housing | Plastic Case |
| IP Rating | IP64 |
| Output Voltage | 40-56Vdc |
| Output Current | 700mA |
| Output Power | 39.2 W |
| Power Factor | >0.9 |
| Start Temperature | -30°C~90°C |
| Weight | 142 g (5 oz) |
| UL Listed | cRUus, CE, FCC |
