ERP Power ESM030W-0700-42, Constant Current LED Driver, Output 29.4W 700mA 24-42Vdc, Tri-Mode Dimming, IP20 Metal Case, Bottom Leads with Mounting Stud, Input 120-277Vac
Regular price
$49.99
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Stock Code | ESM030W-0700-42 |
| Family | Constant Current LED Drivers with Tri-Mode Dimming™ (TRIAC, ELV & 0-10 V) |
| Ballast Type | Electronic LED Driver |
| Dimmable | Yes |
| Length | 4.33 in / 110 mm |
| Width | 2.36 in / 59.9 mm |
| Height | 1.02 in / 25.8 mm |
| Input Voltage | 120-277Vac |
| Bulb Type | LED |

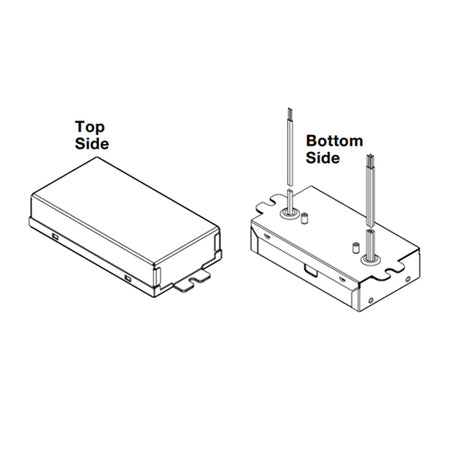

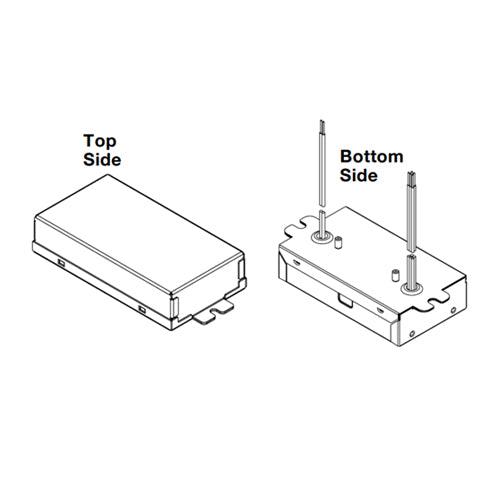

| Housing | Metal Case, Bottom Wire Leads with Mounting Stud |
| IP Rating | IP20 |
| Output Voltage | 24-42Vdc |
| Output Current | 700mA |
| Output Power | 29.4W |
| Power Factor | >0.9 |
| Start Temperature | -30°C~70°C |
| Weight | 252 g (8.9 oz) |
| Energy Star | Yes |
| UL Listed | cRUus, CE, FCC |

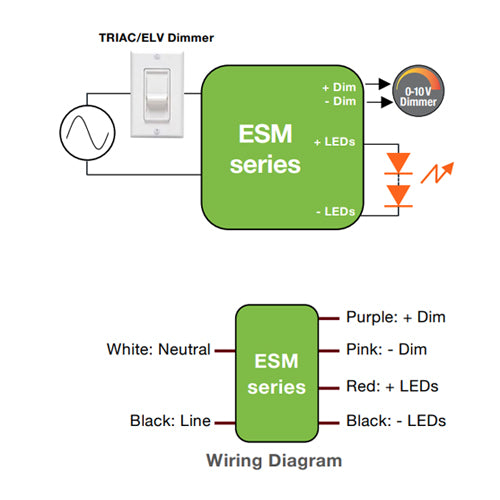

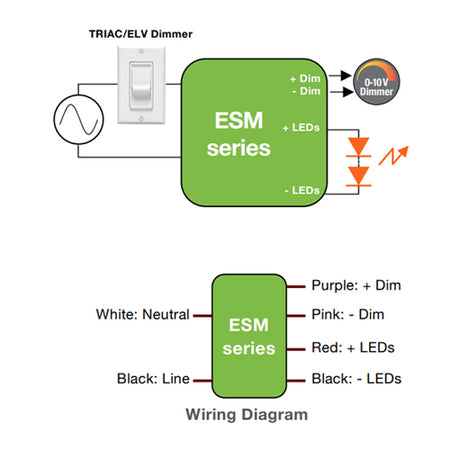

| Notes | Dimming Method: Triac (Forward-Phase/Leading-Edge), ELV (Reverse-Phase/Trailing-Edge) & 0-10V Dimming |
