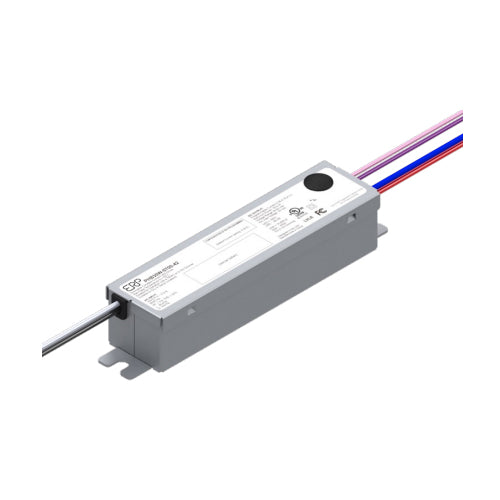

ERP Power PHB30W-0500-42, High Performance Programmable Constant Current LED Driver, Output 21W 0.25-0.5A 28-42Vdc, Tri-Mode Dimming, Input 120-277Vac
Regular price
$53.99
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Stock Code | PHB30W-0500-42 |

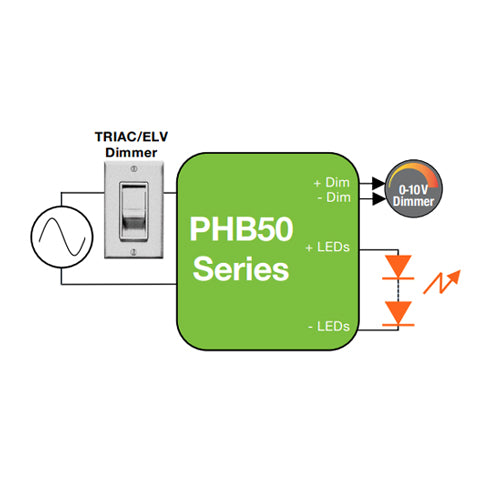

| Family | PHB50/30 Series High Performance Programmable CC Class 2/Class II LED Driver with Tri-Mode Dimming™ (TRIAC, ELV & 0-10 V) |
| Ballast Type | Electronic LED Driver |
| Dimmable | Yes |
| Length | 4.07'' |
| Width | 1.03'' |
| Height | 0.94'' |
| Input Voltage | 120-277Vac |
| Bulb Type | LED |
| Housing | Aluminum Case |
| IP Rating | IP20 |
| Operates | Dimming Method: Triac, ELV or 0 - 10V Dimming, Default Current Setting 250mA |
| Output Voltage | 24-42Vdc |
| Output Current | 250mA - 500mA |
| Output Power | 21W |
| Power Factor | >0.9 |
| Start Temperature | -10°C~50°C |
| Weight | 120 g (4.23 oz) |
| Energy Star | Yes |
| Lead Lengths | 18 AWG on all leads, 22 AWG on 0-10V dimming wires, 203mm (8 in) long, 105°C rated |
| UL Listed | cULus, CE, FCC |
| Notes | We provide free programming services for all programmable LED Drivers we sold as per your requested output Current and Voltage. Please leave a detailing memo if you need this service when you check out. |
