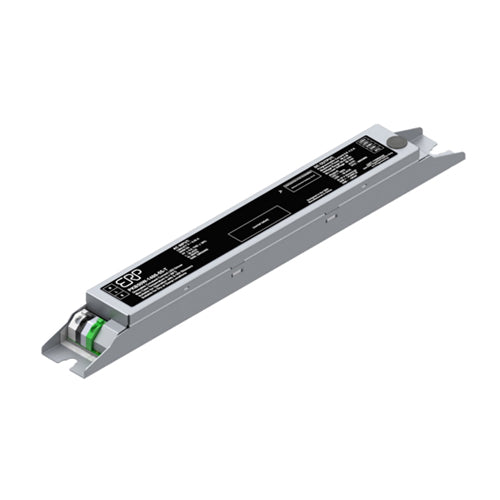

ERP Power PKB30W-1050-55-TN, Programmable Constant Current LED Driver, Output 30W 0.275-1.05A 10-55Vdc, 0-10V Dimming, Aluminum Case with Terminal Blocks, Input 120-277Vac
Regular price
$33.99
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Stock Code | PKB30W-1050-55-TN |
| Family | 20 to 85 W Programmable Constant Current Class 2 LED Driver with 0-10 V Dimming |
| Ballast Type | Electronic LED Driver |
| Dimmable | Yes |
| Length | 10.1'' |
| Width | 1.2'' |
| Height | 1.0'' |
| Input Voltage | 120-277Vac |
| Bulb Type | LED |
| Housing | Aluminum Case with Terminal Block |
| IP Rating | IP20 |
| Output Voltage | 10-55Vdc |
| Output Current | 0.275 - 1.05A |
| Output Power | 30W |
| Power Factor | >0.9 |
| Start Temperature | -20°C~50°C |
| Energy Star | Yes |
| UL Listed | cULus, CE, FCC |

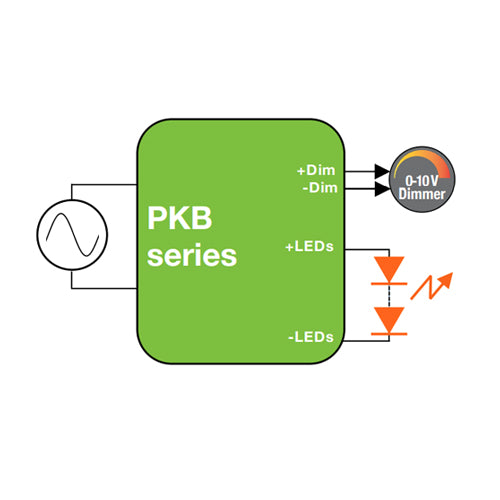

| Notes | Dimming Method: 0 - 10V Dimming, Default Current Setting 700mA |
