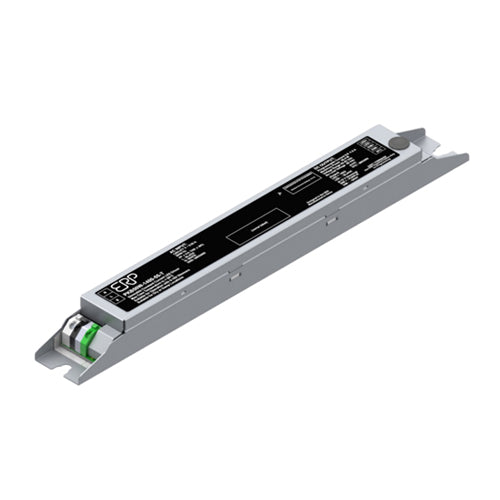

ERP Power PLS-A20W-07-55-TXZ, Programmable Constant Current LED Driver, Output 20W 0.1-0.7A 10-55Vdc, 0-10V Dimming, Aluminum Case with Terminal Blocks and Auxiliary Output, Input 120-277Vac
Regular price
$32.99
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Stock Code | PLS-A20W-07-55-TXZ |
| Family | 20 to 65 W Programmable Constant Current Class 2 LED Driver with 0-10 V Dimming |
| Ballast Type | Electronic LED Driver |
| Dimmable | Yes |
| Length | 10.1'' |
| Width | 1.2'' |
| Height | 1.0'' |
| Input Voltage | 120-277Vac |
| Bulb Type | LED |
| Housing | Aluminum Case with Terminal Block and Auxiliary Output |
| IP Rating | IP20 |

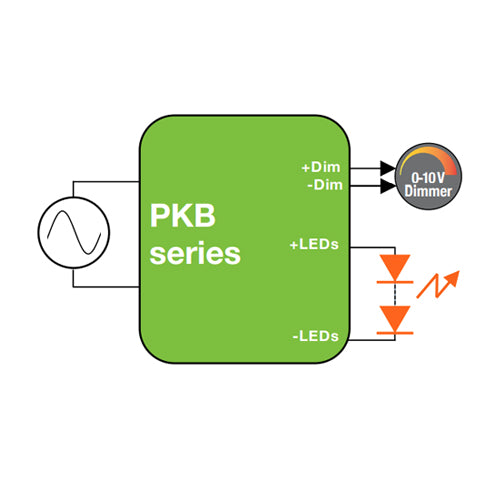

| Operates | Dimming Method: 0 - 10V Dimming, Default Current Setting 350mA |
| Output Voltage | 10-55Vdc |
| Output Current | 0.1 - 0.7A |
| Output Power | 20W |
| Power Factor | >0.9 |
| Start Temperature | -20°C~50°C |
| Energy Star | Yes |
| UL Listed | cULus, CE, FCC |
| Notes | We provide free programming services for all programmable LED Drivers we sold as per your requested output Current and Voltage. Please leave a detailing memo if you need this service when you check out. |
