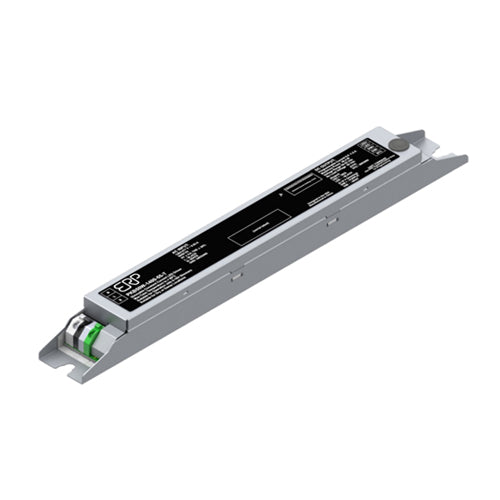

ERP Power PLS-A65W-18-55-TZ, Programmable Constant Current LED Driver, Output 65W 0.6-1.8A 10-55VDC, 0-10V Dimming, Aluminum Case with Terminal Blocks, Input 120-277VAC
Regular price
$39.99
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Stock Code | PLS-A65W-18-55-TZ |
| Family | 20, 30, 50, 65 & 85 W Programmable CC Class 2 LED Driver with 0-10 V Dimming, Dim-to-Off and Optional Auxiliary Output |
| Ballast Type | Electronic LED Driver |
| Dimmable | Yes |
| Length | 10.1'' |
| Width | 1.2'' |
| Height | 1.0'' |
| Input Voltage | 120-277Vac |
| Bulb Type | LED |
| Housing | Aluminum Case with Terminal Block |
| IP Rating | IP20 |
| Dimming Method | 0 - 10V Dimming, Default Current Setting 1200mA |
| Output Voltage | 10-55VDC |
| Output Current | 600-1800mA |
| Output Power | 65W Max |
| Power Factor | >0.9 |
| Start Temperature | -20°C~50°C |
| Energy Star | Yes |
| UL Listed | cULus, CE, FCC |
| Notes | We provide free programming services for all programmable LED Drivers we sold as per your requested output Current and Voltage. Please leave a detailing memo if you need this service when you check out. |
