ERP Power PTB10W-0250-42-ZN, Constant Current LED Driver, Output 10.5W 150-350mA 28-42Vdc, Tri-Mode Dimming (Triac, ELV & 0-10V), IP20, Input 120-277Vac
Regular price
$23.99
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Stock Code | PTB10W-0250-42-ZN |
| Family | Constant Current LED Drivers with Tri-Mode Dimming™ (TRIAC, ELV & 0-10 V) |
| Ballast Type | Electronic LED Driver |
| Dimmable | Yes |
| Length | 70 mm / 2.76 in |
| Width | 40 mm / 1.57 in |
| Height | 29.5 mm / 1.16 in |
| Input Voltage | 120-277Vac |
| Bulb Type | LED |
| Housing | Plastic Case |
| IP Rating | IP20 |
| Output Voltage | 28-42Vdc |
| Output Current | 210mA - 350mA |
| Output Power | 10.5W |
| Power Factor | >0.9 |
| Start Temperature | -30°C~70°C |
| Weight | 154 g (5.4 oz) |

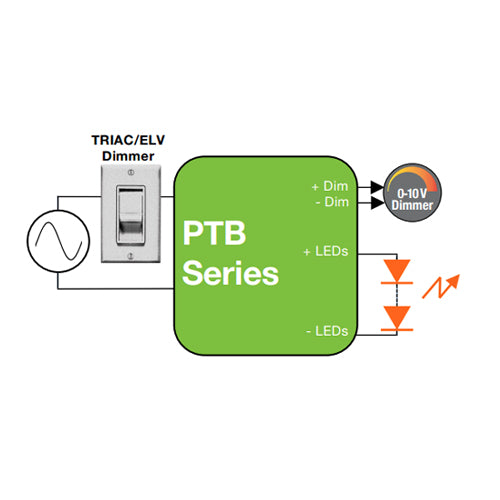

| Operates | Dimming Method: Forward-Phase/Leading-Edge, Reverse-Phase/Trailing-Edge & 0 - 10V Dimming, Factory Default Output Current 250mA |
| UL Listed | cRUus, CE, FCC |
