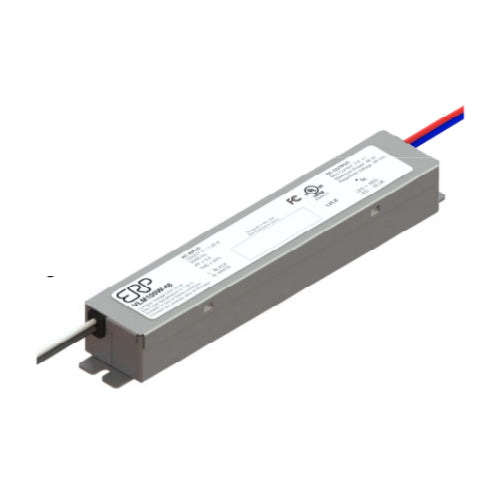

ERP Power VLM100W-12, Constant Voltage LED Driver, Aluminum Case with Flying Leads, Output 96W Max. 12Vdc 0.2A-8A, 120-277Vac Input
Regular price
$45.99
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Stock Code | VLM100W-12 |
| Family | 96 W, Efficient, Compact Non-Dimmable CV Class 2 / Class II LED Drivers |
| Length | 5.39'' |
| Width | 1.02'' |
| Height | 0.77'' |
| Voltage | 120-277Vac |
| Input Current | 1.05A@120Vac, 0.58A@230Vac, 0.48A@277Vac |
| Bulb Type | LED |
| IP Rating | IP20 |
| Output Voltage | 12Vdc |
| Output Current | 0.2A-8A |
| Output Power | 96W |
| Power Factor | >0.9 |
| THD | <10% |
| Weight | 159g (5.60oz) |
| UL Listed | cULus, FCC, CE, CB, RoHS |
| Notes | VLM100W-12 is not Class 2 because the over-current protection of this model exceeds the 5A UL Class 2 limit. |
