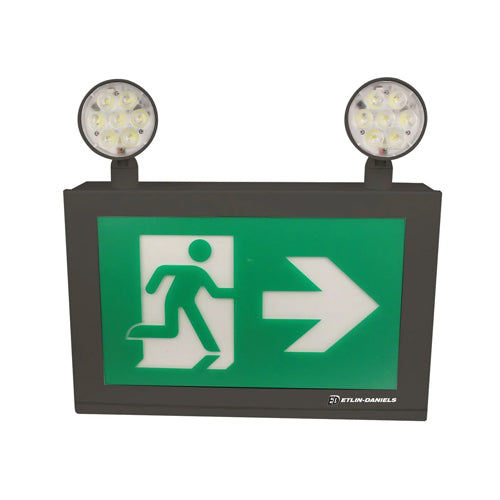

Etlin-Daniels EC3144BLM-A13U24-BB-GU-10RC, LED Running Man Exit Sign with Adjustable 2 x 5W Combo Heads, Up to 144W of Remote Heads at 24VDC, 120/347V, Remote Capable, Black
Regular price
$495.29
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
LED Running Man Exit Sign with Combo Heads, Adjustable 2 X 5W Combo Heads, Internal Battery May Power Up to 144W of Remote Heads at 24VDC, 120 / 347V, Battery Back Up > 120 Min, Remote Capable, CAN ICES-005 (B) / NMB-005 (B)
Design:
• Rugged steel housing – built for large battery capacity.
• Thermplastic, adjustable LED Combo Heads.
• Universal Spider pattern knockouts and keyhole slots stamped in back of housing for mounting.
• Side mounting available.
• 3 Running Man pictogram legends are supplied for directional orientation – single & double sided.
• White powder coat finish is standard. Black powder coat also available.
• Top Combo Head Mounting.
Circuits:
• 30 Minutes Emergency Power duration time is standard.
• Push Button test switch / Pilot LED for AC on and Charge Indicator.
• Solid state design.
• Surge Protection – 1500V.
• Maintenance Free Lead Acid Battery.
• Complete Battery Recharge time from 24-50 hours.
| Wattage (W) | 144W |
| Input Power | 27.5 – 39W |
| Wattage Capacity | 30 Min: 142W / 60 Min: 71W / 90 Min: 47W / 120 Min: 35W |
| Heads | 2 x 5W |
| Voltage (V) |
Input: 120/347V, 50/60Hz
Output: 24 VDC
|
| Battery Back-Up |
>120 mins.
|
| Remote Capable | 134W |
| Battery Type | Lead Acid 12V 8AH*2 |
| Certification | CSA, CAN ICES-005 (B) / NMB-005 (B) |
