Etlin Daniels FL010-WS, Short Profile T8/T10/T12 Linear Fluorescent Light Socket, Medium Bi-Pin G13 Base, Flexible Snap-in Shoulder Shunted, 660W 600V, 10 Packs
Regular price
$19.46
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
* List price is for 10 Packs

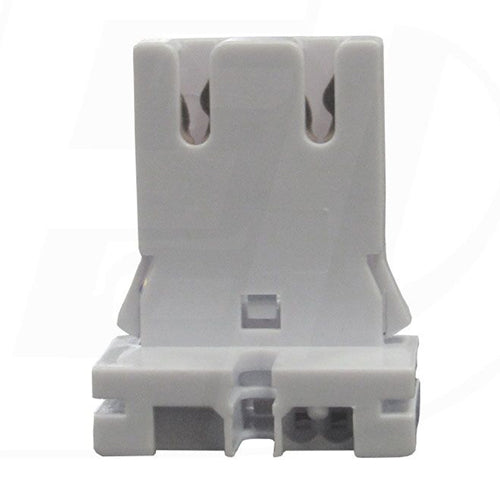

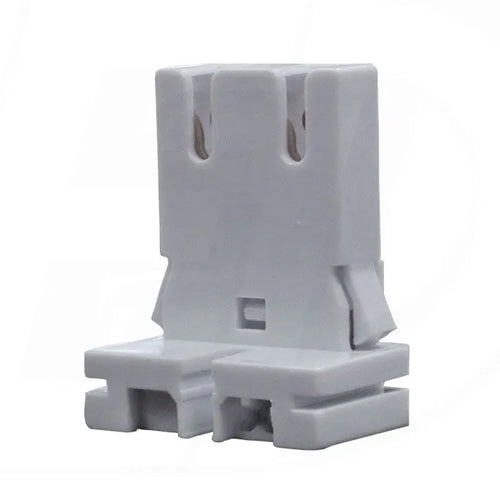

T8, T10, T12 Lamps Linear Fluorescent Light Socket, Quick Connect 18 AWG Solid Wire, Slot, Screw Mount, Shunted, Short Type, G13 Base, 600 Watt 600 Volts Max
- White polycarbonate body, rated 110°C
- Straight-in and “U” lamp applications, self aligning for “U” shaped lamps
- Quick connect push-in wire terminals for 18 AWG solid wire 5⁄16”
- Two wire ports per terminal for easy harness wiring; double edge contacts
- For 0.23” – 0.040” (0.6 mm – 1.0 mm) panel thickness
- Available shunted for use with instant start electronic ballasts; saves time and makes wiring easier
- Rated 660W, 600V, suitable for all new HO lamps
| Item | Lampholder Fluorescent |
| Lamp Type | T8/T10/T12 |
| Use With | Flamps all G13 base |
| Mounting | Slot, Screw Mount |
| Height | Short |
| Locating Nib | No |
| Shunted | Yes |
| Connection | Quickwire Push In |
| Wires From. | Bottom 2 wires per port |
| Wattage (W) | 660W |
| Voltage (V) | 600V |
| Material | Polycarbonate |
| Termination |
5/16"
|
| Certifications | cULus, cCSAus |
