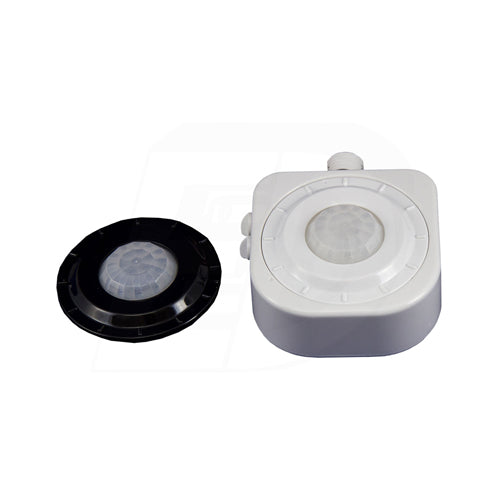

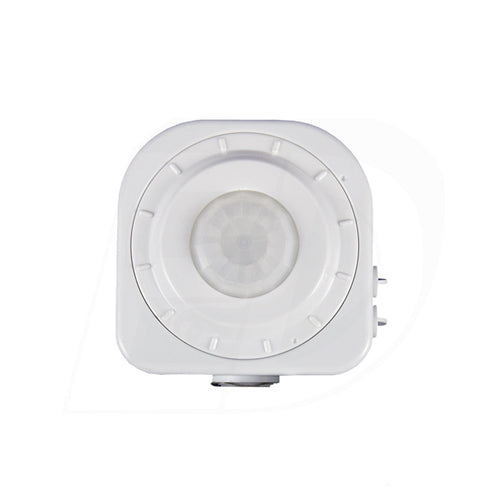

Etlin-Daniels SENPIR-HB-01, PIR High Bay Occupancy Sensor/120V-277V-347V/360˚/ Fixture Mounted
Regular price
$47.57
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Etlin-Daniels SENPIR-HB-01+OB Line Voltage PIR Occupancy Sensor with optional Long Bracket and the SENPIR-HB-01+OB2 with optional Short Bracket features passive Infrared (PIR) Sensing Technology.It’s line voltage sensor with 360 degree lens offer amazing performance and sensitivity to small movements and are ideal for new or retrofit applications. Compatible with electronic and magnetic ballasts. Ideal applications consist of Lighting ON/OFF Control for Halogen, Fluorescent and LED light sources. Ideal for High Bay fixtures in warehouses, manufacturing facilities and retail box stores. The units are UL and cUL approved and comply with California Title 24 requirements.
• Relay circuitry – zero crossing to provide long reliable life.
| Input Voltage | AC120V~277V~347V |
| Load Requirement |
800VA˜120VAC
1200VA˜277VAC
1500VA˜347VAC
|
| Power Frequency | 50˜60Hz |
| Certification | cULus, UL |
| Product Dimensions | 3.58 x 1.54 x 3.58 (Inches) |
