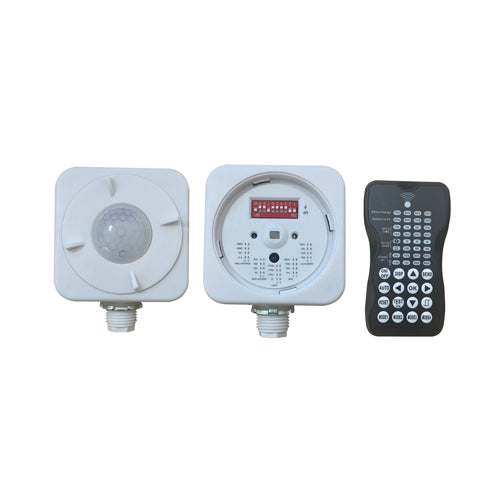

Etlin-Daniels SENPIR-HLB-D, Dimmable High and Low Bay PIR Occupancy Sensor /120V-277V-347V/360˚
Regular price
$92.35
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Etlin-Daniels SENPIR-HLB-D is a Wet Location rated, High / Low Bay Passive Infrared Sensor, which can be mounted to both indoor and outdoor luminaires to provide multi-level control, based on both motion and lux settings. It controls both 0-10V LED Dimming Drivers as well as Dimming Ballasts. When motion is detected within the sensor’s set coverage area, the relay in the sensor closes and preset lighting loads are automatically turned on. Reduced Sensor settings can be achieved using just Dip Switches. Expanded settings can be achieved using the Sensor Remote Control – RC-SENPIR-HLB.
• Wet Location Rated Dimmable Infrared Sensor (please ensure proper ingress protection connections are made).
• High / Low Bay rated – all with same lens.
• Coverage 8-40ft.
• No minimum load requirement.
• White high impact injection molded plastic.
• Remote Control sold separately.
• Remote Control expands setting options over just using Dip Switches.
• May control dimming Halogen / Incandescent, CFL, Fluorescent, HID, LED.
| Coverage Range | 8' – 40' |
| Input Voltage | AC120V~277V~347V |
| Load Requirement |
800W @ 120VAC
1200W @ 277VAC
1500W @ 347VAC
|
| Power Frequency | 50˜60Hz |
| Certification | cULus, UL, CAN ICES-005 (B) / NMB-005 (B) |
| Product Dimensions | 3.58 x 1.54 x 3.58 (Inches) |
