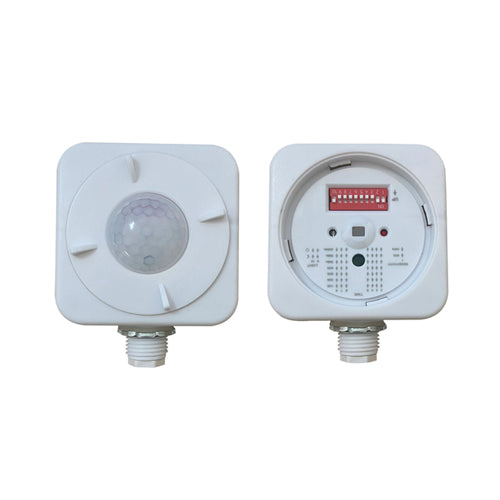

Etlin-Daniels SENPIR-HLB-O, High and Low Bay PIR Occupancy Sensor /120V-277V-347V/360˚
Regular price
$68.40
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Etlin-Daniels SENPIR-HLB-O is a Wet Location rated, High / Low Bay Passive Infrared Sensor, which can be mounted to both indoor and outdoor luminaires to provide extra energy savings by turning off fixtures when there is no occupancy. It provides multiple settings by dip switch to regulate Detection Range, Hold Time and Lux Settings.
• Wet Location Rated Dimmable Infrared Sensor (please ensure proper ingress protection connections are made).
• High / Low Bay rated – all with same lens.
• Coverage 8-40ft.
• No minimum load requirement.
• White high impact injection molded plastic.
• Dip Switches control Detection Range, Hold Time & Lux settings.
• May be used with Halogen / Incandescent, CFL, Fluorescent, HID, LED.
| Coverage Range | 8' – 40' |
| Input Voltage | AC120V~277V~347V |
| Load Requirement |
800W @ 120VAC
1200W @ 277VAC
1500W @ 347VAC
|
| Power Frequency | 50˜60Hz |
| Certification | cULus, UL, CAN ICES-005 (B) / NMB-005 (B) |
| Product Dimensions | 3.84 x 1.74 x 3.2 (Inches) |
