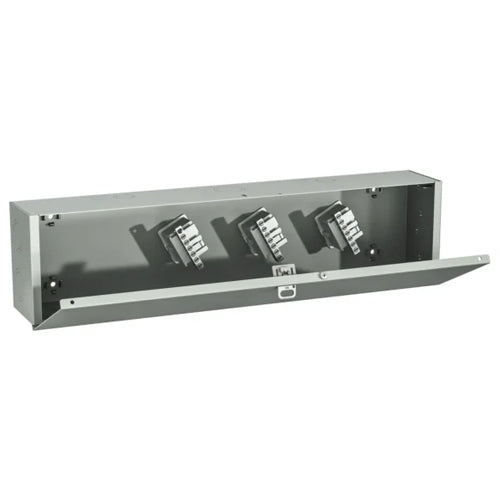

EXM 1100 T2103, NEMA 1 Splitter Trough with Padlockable Latch Cover, 3 Wire, 125 Amp, Dimension 24'' x 6'' x 4'', IP 20, Mild Steel Painted ASA 61 Gray
Regular price
$80.78
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The 1100 B & T splitter boxes are designed for 600 V (max.) service of 3 to 4 wires, in ordinary locations. They are made of high quality 14 GA or 16 GA steel. They have mounting holes in the back, knockouts, bracket hinges and a provision for padlocking. The phenolic insulated splitter blocks are factory installed. The 225, 400 and 600 lugs have removable tops, which allows wires to be put into place easily. Enclosures are finished with ANSI/ASA 61 smooth gray heat fused powder paint, electro-statically applied on a pretreated base. Inner panel is galvanized.
| Voltage | 600 V (max.) |
| Maximum Amperage (CUL-AL) | 125A |
| Wires | 3 Wires |
| IP Rating | IP20 |
| Enclosure Rating | NEMA 1 |
| Dimension (inch Height x Width x Depth) | 24x6x4 |
| Material | Mild Steel |
| Finish | Painted ASA 61 Smooth Gray |
| Certifications | CSA, RoHS, CE |
