FRICO PAEC2210CE05-600VNA, Air Curtain for Small Entrances 5kW 600V 3 Phase White, Electric Heat, 1m
Regular price
$4,877.31
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

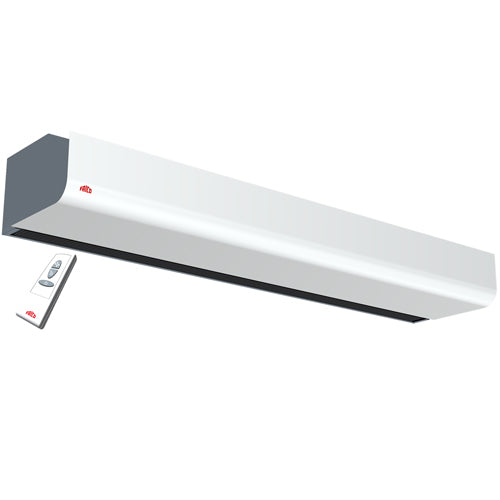

Equipped with an energy-efficient EC motor and smart control, the ORA-EC22 air curtain is ideal for small entrances, vestibules, and commercial spaces. With its optimized airflow and optional electric heating, it ensures effective climate separation while reducing operating costs.
- Horizontal or vertical mounting.
- Recommended installation height: Up to 2.2 m (7.2 ft).
- Available widths: 1 m, 1.5 m, or 2 m (3.28 ft, 5 ft, or 6.5 ft).
- Low noise level and high energy efficiency.
| Product Family | ORA-EC22 - Air Curtain for Small Entrances |
| Model | • Electric heat. • No heat. |
| Color | • Stainless steel housing: white (RAL 9016, NCS S 0500-N). • Grille, rear face and ends grey (RAL 7046). • Custom colors available upon request (RAL Chart). |
| Tension | • 208V, 480V, 600V, 60 Hz. |
| Motor | • Very low operating costs can be achieved thanks to the combination of EC motors and Frico’s unique fan geometry. |
| Construction | • Quick access to internal components via the maintenance hatch. • High-limit temperature control with automatic reset. • Integrated transformer for motor and control circuit (480V and 600V models). |
| Fan | • Squirrel-cage fans. |
| Element | • Element provides instant heat (electric heat model). |
| Regulation | • Integrated control system and additional easy to use remote control. • Door switch included. |
| Installation | • Maximum height installation: 7.2 ft. (2.2 m) above the floor. • Suspended mounting: • With pendulum brackets included: • 4 brackets for 1m and 1.5m models and 6 brackets for 2m models. • With threaded rods (not included). |
| Warranty | • 5-year warranty against defects. |
| Certification | • CAN/CSA-E60335-2-30 :13 (R2018). • UL 2021 ED. 4.0. • Protection class for units with electrical heating: IP20. • Protection class for units without heating: IP21. |

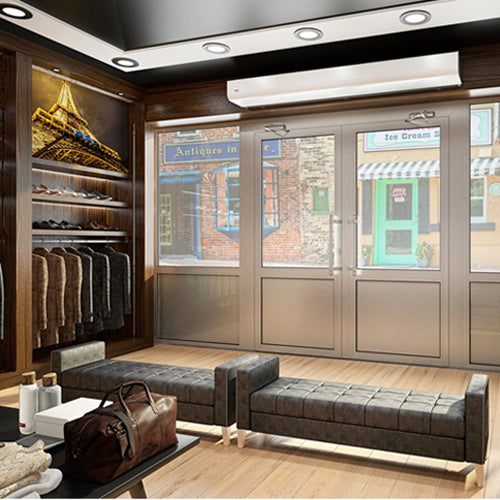

| Application | • Small entrances, vestibule, commercial building, lobby, service door, hospital, store entrance, drive-through, service counters. |
