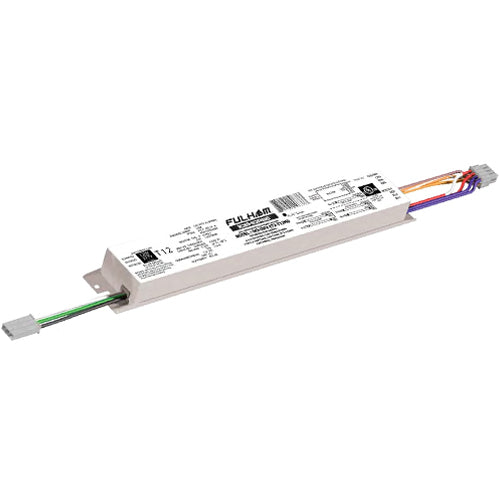

Fulham IH1-UNV-232-T8, IceHorse 1 Fluorescent Low Temperature Electronic Ballast, Programmed Start, 120-277V Input, 50/60 Hz, 0.85A Max, 100W Max
Regular price
$198.50
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Max. Current | 0.85 AMP |
| Max. Power | 100W |
| Input Voltage | 120V-277V ± 10% |
| Power Line Frequency | 50/60Hz |
| High Power Factor | > 0.98 |
|
THD |
< 10% |
| # of Lamps | 1 or 2 |
| Lamp Type/Designation | F25 / F32 / F40 T8 |
| Re-Lamping Circuit | Deactivated Lamp Protection |
| Surge Protection | ANSI C62.41-A7 Strikes and EN6100-4-5 |
| Current Protection | Fuse |
| Lamp Operation Mode | Programmed Start |
| Lamp Connection | Parallel |
| Ignition Method | Programmed Pre-Heat Start |
| Lamp Current Crest Factor | < 1.7 |
| Voltage Transients | ANSI 62.41 |
| Circuit to Ground | < 600 VAC |
| UL / cULus Listed | Type 1 Outdoor |
| Type ''CC'' Rated | Anti-Arch |
| Thermal Protection | Class ''P'' |
| EMI/RFI Compliance | FCC Part 18 non-consumer |
| Sound Rating | A |
| Minimum Operating Temperature | -30°C (-22°F) |
| Maximum Case Temperature | 70°C (158°F) |
| Ballast Case Construction | Painted Steel |
| Input/Output Connections | Wire Leads + Connectors |
| Potted | Yes |
| Warranty | 3 Years |
