Home » Fulham WH3-120-C, WorkHorse 3 Instant Start Fluorescent Solid State Electronic Ballast, 120VAC 50/60Hz Input, 0.56A Max, 64W Max, Compact Case, Side Leads
Fulham

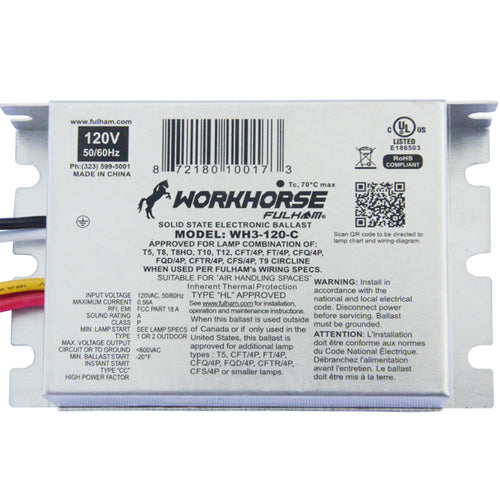

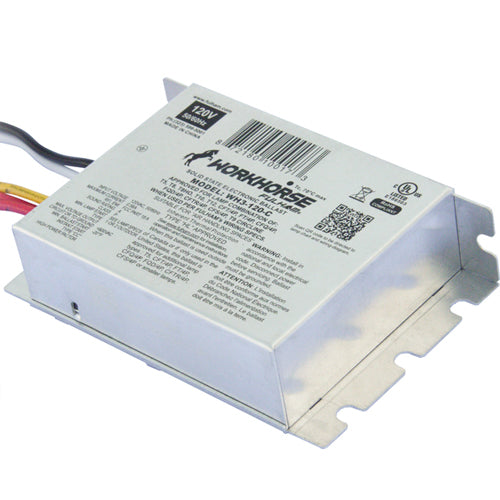

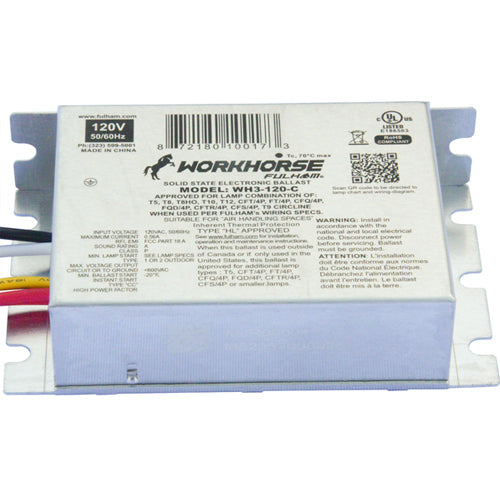

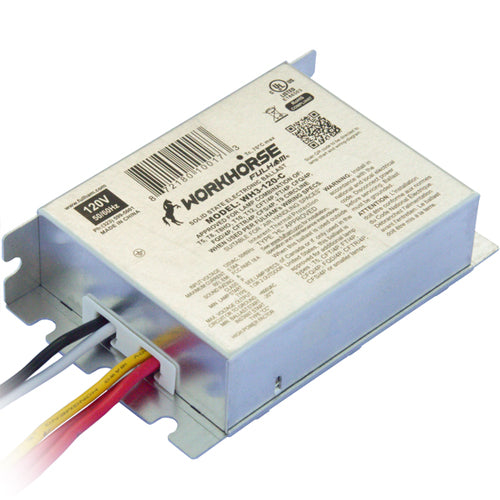

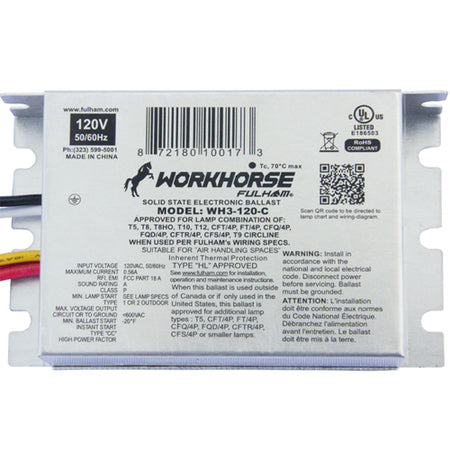

Fulham WH3-120-C, WorkHorse 3 Instant Start Fluorescent Solid State Electronic Ballast, 120VAC 50/60Hz Input, 0.56A Max, 64W Max, Compact Case, Side Leads

In stock
SKU: WH3-120-C
$54.35
Rated voltage
Power

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Max. Current 0.56 AMP
Max. Power 64W
Input Voltage 120VAC ±10%, 50/60Hz
EMI / RFI Compliance FCC Part 18-A
Ballast Type Instant Start
Voltage Transients ANSI 62.41
Current Protection Fuse
Sound Rating A
Dimensions (Inches) 3.8 x 2.5 x 1
Configuration Compact case, side leads
Minimum Operating Temperature -30°C (-22°F)
Maximum Case Temperature 70°C (158°F)
Input/Output Connections UL / cUL Listed, Class ''P'', 1 or 2 Outdoor
Warranty 5 Years from the date of manufacture when properly installed
