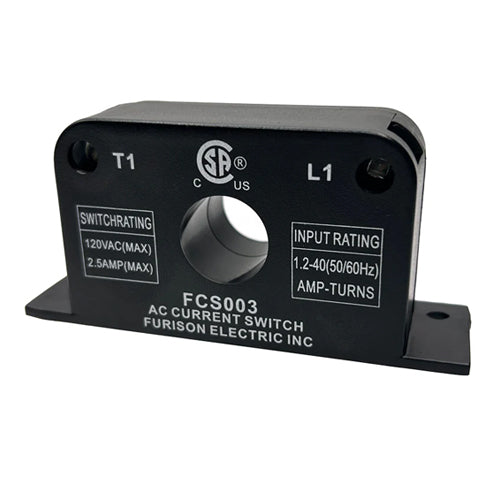

Furison Electric FCS003, Self-Powered AC Current Switch, Dryer Switch, Input Rating 1.2 - 40A, Switch Rating 120Vac 2.5A
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The series FCS003 current switch was designed for monitoring AC. By sensing AC, this device controls AC load on motor, relay, lighting, fan, and applicably monitored circuit, together with contactor. Input passing through current rang 1.2-- 40A, and maximum voltage load up to 120V/2.5A. Delay module was Incorporated into the circuit for 5, 10, 15 minutes and zero time delays on action.
With its high overload, accuracy, isolation, safety, low power consumption and strong interference resistance ability, this device has been already widely used in industrial automation.
| Stock Code | FCS-003 |
| Power-supply | None, self-powered |
| Amperage Range | 1.2 to 40A continuous |
| Conduct current | 0.5±0.2A |
| Dimensions | (47×100×28.5)mm |
| Switch state | Normal open |
| Output Rating | 2.5A @ 120VAC |
| AC load frequency | 10-200Hz |
| Hysteresis | ≤ 1% |
| Accuracy | 10% |
| Repeatability | 100% |
| Power consumption | ≤ 1W |
| Response time | <200ms |
| Leakage current | ≤ 1mA |
| Temperature limit | 32 to 122℉ (0 to 50℃ ) |
| Humidity limits | 10 to 95% RH (none-condensing) |
| Enclosure Rating | UL 94V-0 flammability rated ABS, insulation class 600 V |
| Maximum overload | 200% (< 200% of the rated cross-core current) |
| Cross Reference |
ICON International Conduit Ltd. Model# SK-100 AC Powered AC Switch |
