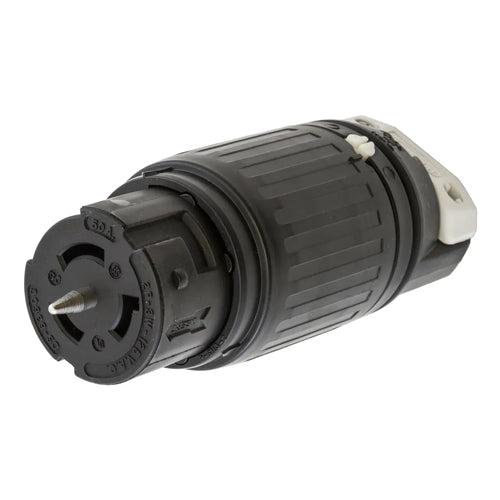

Hubbell CS6360C, Female Connector Bodies, Nylon Housing, Thermoplastic Polyester Interior, 50A 125V, 2-Pole 3-Wire Grounding
Regular price
$293.72
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Cord Diameter | 0.830"-1.250"(21.08-31.75) |
| Amperage Rating | 50A |
| Voltage Rating | 125V |
| Insulation | Insulated Body |
| Phase | Single Phase |
| Housing | Nylon |
| Terminal Retainer | Thermoplastic polyester |
| Contacts | Brass |
| Moisture Resistance | IP20 Suitability |
| Dimensions |
6.50 in x 2.56 in x 2.50 in |
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire |
| Wire Size | #10 AWG - #6 AWG |
| Operating Temperatures | Maximum Continuous 75°C Minimum -40°C (w/o impact) |
| Certifications and Compliance | Listed to UL 498 Certified to CSA C22.2 No.42 |
