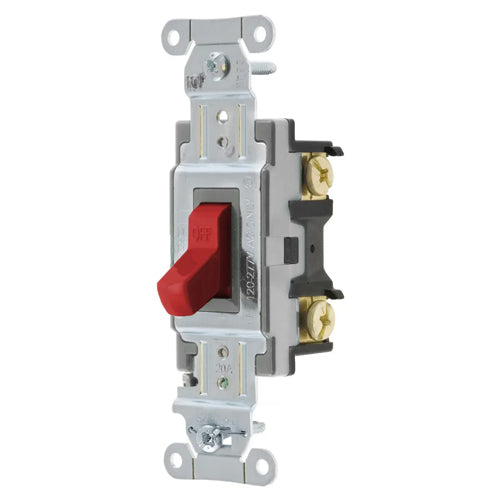

Hubbell CSB220R, Toggle Switch, Commercial Grade, Double Pole, 20A 120/277V AC, Back and Side Wired, Red
Regular price
$19.61
Pickup available at 220 Alden Road
Usually ready in 24 hours
Use this text to encourage communication or promote sharing on social networks.
- Thread cleaning captive mounting screw
- Abuse resistant nylon toggle
- Steel, zinc plated bridge is corrosion resistant
| Amperage Rating | 20A |
| Voltage Rating | 120-277 VAC |
| Top Material | Thermoplastic |
| Toggle Material | Nylon |
| Contacts | Silver Alloy |
| Terminal Screws | Brass |
| Auto Grounding Mounting Bridge | Zinc Plated Steel |
| Dimensions | 4.18 in x 1.49 in x 1.83 in |
| Wire Size | #14 AWG to #10 AWG |
| Connectivity | Back and Side Wired |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Certifications and Compliance | UL Listed, CSA Certified, Fed. Spec. W-S-896 |
