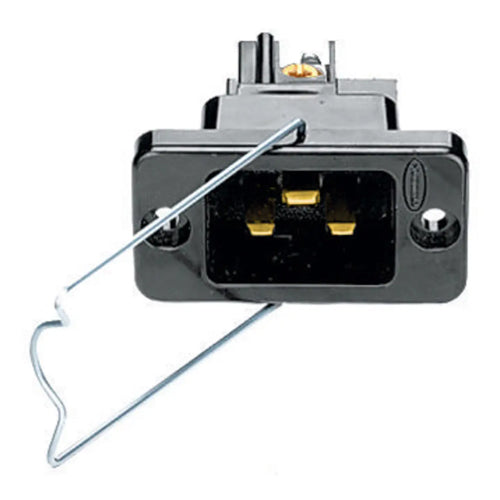

Hubbell H320BL, IEC 320 Devices, Inlet with Wire Bail, International Rated, Pressure Screw Terminal, 20/16A 250V, 2-Pole 3-Wire Grounding, Black
Regular price
$28.08
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Insulation | Insulated Body |
| Item Type | Chassis Single |
| Material | Nylon |
| Mounting Hardware | Screw Mounting |
| Number Of Poles | 2-Pole |
| Dimensions |
1.47 in x 1.64 in x 1.19 in |
| Amperage Rating | 20/16A |
| Voltage Rating | 250V |
| Phase | Single Phase |
| Connectivity | Screw Terminals |
| Number Of Wires | 3-Wire |
| Wire Size |
North American – #16-12 AWG stranded or solid copper conductor only International – 1.55mm²-2.5mm² |
| Operating Temperatures | Maximum continuous 75°C; minimum -40°C (w/o impact) |
| Certifications and Compliance | UL Listed 20A 250V AC-File No. E1706 CSA certified 20A 250V AC-File No. 17337 UL classified to IEC 320, 16A 250V AC-File No. E111246 TUV and VDE Certified |
