Home » Hubbell HBL1557LA, Extra Heavy Duty Industrial Series, Toggle Switch, Momentary Contact, Three Position, Two Circuit, Center OFF, Single Pole, 20A 120/277V AC, Light Almond
Hubbell

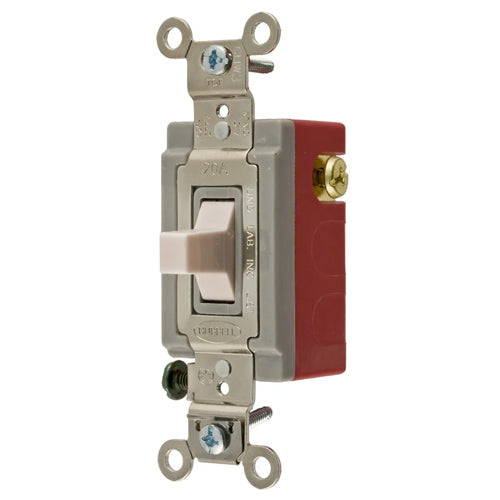

Hubbell HBL1557LA, Extra Heavy Duty Industrial Series, Toggle Switch, Momentary Contact, Three Position, Two Circuit, Center OFF, Single Pole, 20A 120/277V AC, Light Almond

In stock
SKU: HBL1557LA
$103.70
Ampere & voltage rating
Colour

Use this text to encourage communication or promote sharing on social networks.

You can also add links

  • Large brass binding head screws with deep slots
  • Abuse resistant nylon toggle
  • Strip gauge for accurate wiring
Amperage Rating 20A
Voltage Rating 120-277 VAC
Top Material Thermoset
Toggle Material Nylon
Contacts Silver Alloy
Terminal Screws Brass
Contact Configuration Momentary
Dimensions 4.06 in x 1.31 in x 1.89 in
Wire Size #14 AWG to #10 AWG
Connectivity Back and Side Wired
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Certifications and Compliance UL Listed, CSA Certified, Fed. Spec. W-S-896
