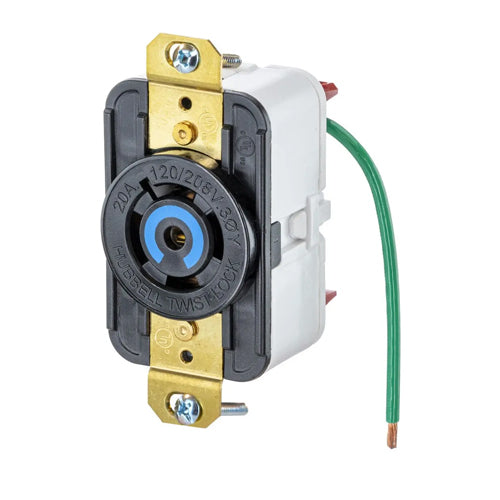

Hubbell HBL2510ST, Single Flush Receptacles, Black and White Nylon, Spring Termination, 20A 120/208V, L21-20R, 3 Phase, 4-Pole 5-Wire Grounding
Regular price
$102.09
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Amperage Rating | 20A |
| Voltage Rating | 120/208V |
| Nema Rating | L21-20R |
| Phase | 3 Phase WYE |
| Face | Nylon |
| Contacts | Brass |
| Dimensions | 3.28 in x 1.7 in x 1.468 in |
| Moisture Resistance | IP20 Suitability |
| Number Of Poles | 4-Pole |
| Number Of Wires | 5-Wire |
| Wire Size | 14 AWG - 10 AWG solid, 14 AWG - 8 AWG stranded (including compact stranded) |
| Operating Temperatures | Maximum Continuous 75°C Minimum -40°C (w/o impact) |
| Certifications and Compliance | Listed to UL 498 Certified to CSA C22.2 No.42 |
