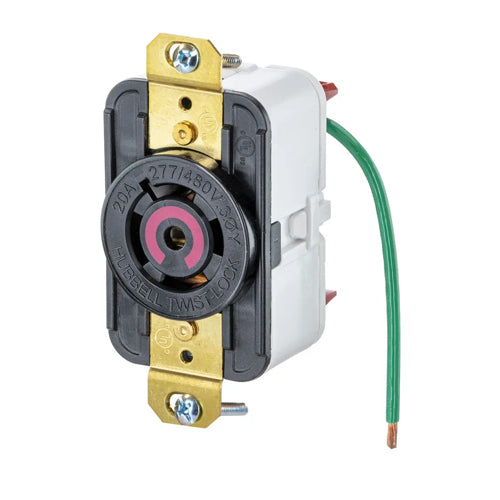

Hubbell HBL2520ST, Single Flush Receptacles, Black and White Nylon, Spring Termination, 20A 277/480V, L22-20R, 3 Phase, 4-Pole 5-Wire Grounding
Regular price
$119.48
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Amperage Rating | 20A |
| Voltage Rating | 277/480V |
| Nema Rating | L22-20R |
| Phase | 3 Phase WYE |
| Face | Nylon |
| Contacts | Brass |
| Dimensions | 3.28 in x 1.7 in x 1.468 in |
| Moisture Resistance | IP20 Suitability |
| Number Of Poles | 4-Pole |
| Number Of Wires | 5-Wire |
| Wire Size | 14 AWG - 10 AWG solid, 14 AWG - 8 AWG stranded (including compact stranded) |
| Operating Temperatures | Maximum Continuous 75°C Minimum -40°C (w/o impact) |
| Certifications and Compliance | Listed to UL 498 Certified to CSA C22.2 No.42 |
