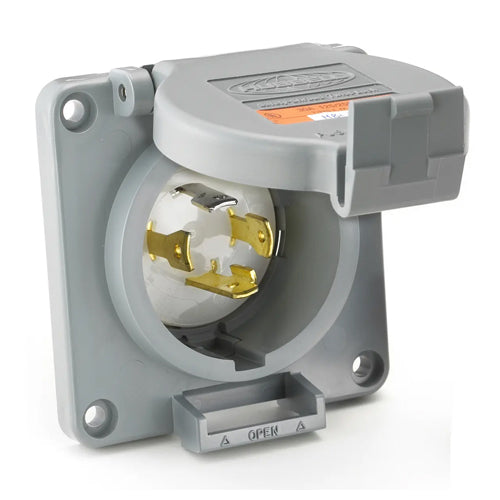

Hubbell HBL2615SWR, Watertight Safety-Shroud Reverse Service Flanged Inlet, Gray Housing and Flange, 30A 125V, L5-30P, 2-Pole 3-Wire Grounding
Regular price
$271.38
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Amperage Rating | 30A |
| Voltage Rating | 125V |
| Nema Rating | L5-30P |
| Phase | Single Phase |
| Housing | PBT |
| Blades | Brass |
| Moisture Resistance | Type 4, 4X, 12, IP66 suitability |
| Dimensions |
3.75 in x 3.75 in x 2.69 in |
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire |
| Wire Size | #16 AWG - #8 AWG |
| Operating Temperatures | Maximum Continuous 75°C Minimum -40°C (w/o impact) |
| Certifications and Compliance | Listed to UL 498 Fed.Spec. W-C-596 Certified to CSA C22.2 No.42 UL Listed, CSA Certified to Type 4, 4X and Type 12 |
