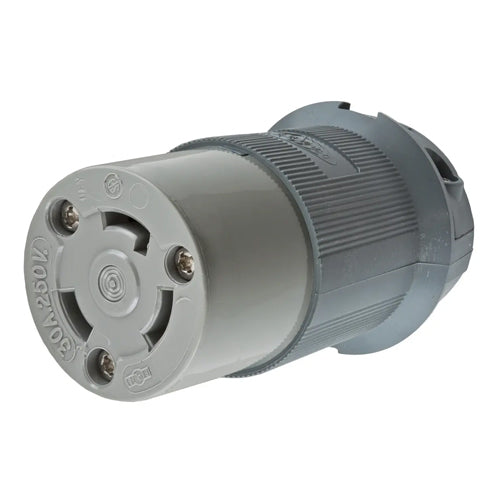

Hubbell HBL2623F, Insulgrip Connector Bodies, Heat Stabilized, Gray Nylon, 30A 250V, L6-30R, 2-Pole 3-Wire Grounding
Regular price
$193.08
Pickup available at 220 Alden Road
Usually ready in 24 hours
Use this text to encourage communication or promote sharing on social networks.
| Cord Diameter | 0.360"-0.930" (9-24) |
| Amperage Rating | 30A |
| Voltage Rating | 250V |
| Nema Rating | L6-30R |
| Phase | Single Phase |
| Insulation | Insulated Body |
| Housing | Nylon |
| Contacts | Brass |
| Moisture Resistance | IP20 Suitability |
| Dimensions |
3.86 in x 2.26 in x 2.26 in |
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire |
| Wire Size | #16 AWG to #8 AWG |
| Operating Temperatures | Maximum Continuous 75°C Minimum -40°C (w/o impact) |
| Certifications and Compliance |
Listed to UL 498 Fed. Spec W-C-596 Certified to CSA C22.2 No. 42 |
