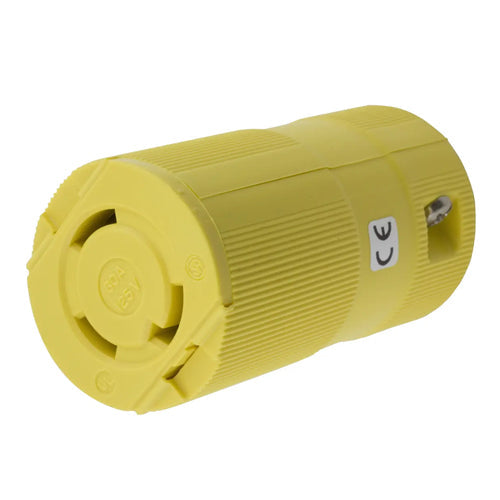

Hubbell HBL26CM13V, Valise Connector Body, Corrosion Resistant, Yellow Nylon, 30A 125V, L5-30R, 2-Pole 3-Wire Grounding
Regular price
$57.24
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Cord Diameter | 0.590"-.930" (15.0-23.6) |
| Amperage Rating | 30A |
| Voltage Rating | 125V |
| Nema Rating | L5-30R |
| Insulation | Insulated Body |
| Phase | Single Phase |
| Housing | Nylon |
| Contacts | Brass - Nickel plated |
| Moisture Resistance | IP20 suitability |
| Dimensions |
2.26 in x 2.26 in x 3.86 in |
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire |
| Wire Size | #18 AWG to #10 AWG |
| Operating Temperatures | Maximum Continuous 75°C Minimum -40°C (w/o impact) |
| Certifications and Compliance | Listed to UL 498 Fed.Spec. W-C-596 Certified to CSA C22.2 No.42 |
