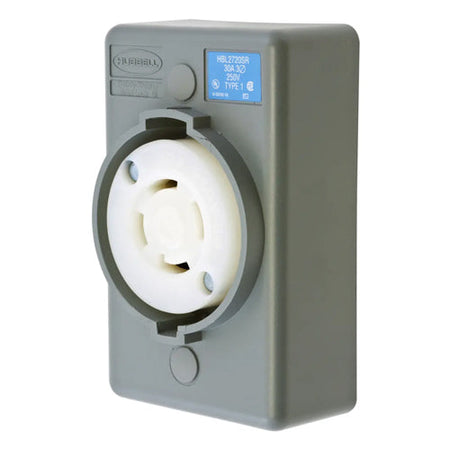

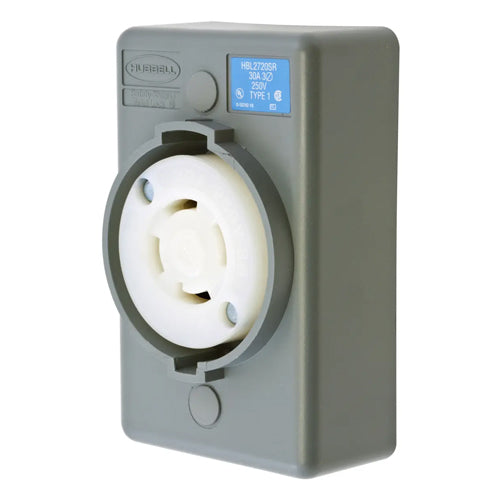

Hubbell HBL2720SR, Safety-Shroud Twist-Lock Receptacles, Surface Mounting, One Gang, Back Wired, 30A 250V, L15-30R, 3-Pole 4-Wire Grounding
Regular price
$118.67
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Amperage Rating | 30A |
| Voltage Rating | 250V |
| Nema Rating | L15-30R |
| Phase | Three Phase |
| Housing / Flange | RPT |
| Contacts | Brass |
| Dimensions | 4.56 in x 2.84 in x 1.71 in |
| Moisture Resistance | IP20 Suitability |
| Number Of Poles | 3-Pole |
| Number Of Wires | 4-Wire |
| Wire Size | #16 AWG to #8 AWG |
| Operating Temperatures | Maximum Continuous 75°C Minimum -40°C (w/o impact) |
| Certifications and Compliance | Listed to UL 498 Fed.Spec. W-C-596 Certified to CSA C22.2 No.42 |
