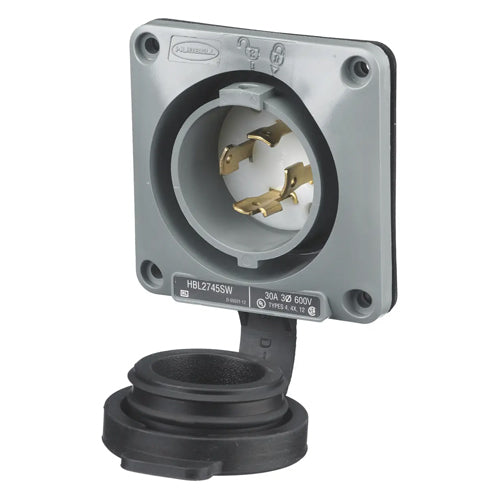

Hubbell HBL2745SW, Watertight Safety-Shroud Flanged Inlets, Gray Housing and Flange, 30A 600V, L17-30P, 3-Pole 4-Wire Grounding
Regular price
$271.38
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Amperage Rating | 30A |
| Voltage Rating | 600VAC |
| Nema Rating | L17-30P |
| Phase | Three Phase |
| Housing / Cord Clamp | PBT |
| Blades | Brass |
| Moisture Resistance | Type 4, 4X, 12, IP66 suitability |
| Dimensions |
3.75 in x 3.75 in x 2.44 in |
| Number Of Poles | 3-Pole |
| Number Of Wires | 4-Wire |
| Wire Size | #16 AWG to #8 AWG |
| Operating Temperatures | Maximum Continuous 75°C Minimum -40°C (w/o impact) |
| Certifications and Compliance | Listed to UL 498 Fed.Spec. W-C-596 Certified to CSA C22.2 No.42 UL Listed, CSA Certified to Type 4, 4X and Type 12 |
