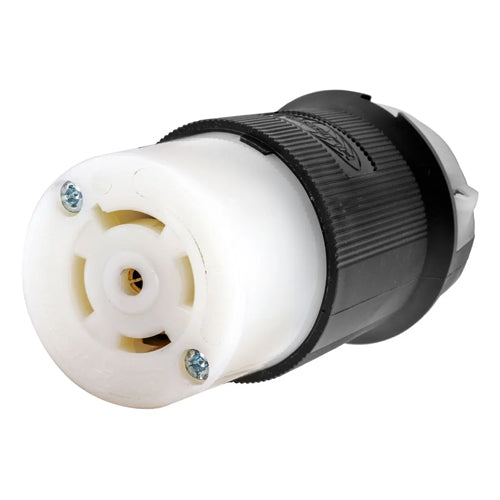

Hubbell HBL2803, Insulgrip Female Connector Bodies, Black and White Nylon, 30A 240/415V, L26-30R, 3 Phase, 4-Pole 5-Wire Grounding
Regular price
$156.75
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Cord Diameter | 0.350"-1.150"(9-29) |
| Amperage Rating | 30A |
| Voltage Rating | 240/415V |
| Nema Rating | L26-30R |
| Phase | 3 Phase WYE |
| Housing | Nylon |
| Blades | Brass |
| Dimensions | 3.86 in x 2.33 in x 2.33 in |
| Moisture Resistance | IP20 Suitability |
| Number Of Poles | 4-Pole |
| Number Of Wires | 5-Wire |
| Wire Size | #16 AWG to #8 AWG |
| Operating Temperatures | Maximum Continuous 75°C Minimum -40°C (w/o impact) |
| Certifications and Compliance | Listed to UL 498 Fed.Spec. W-C-596 Certified to CSA C22.2 No.42 |
