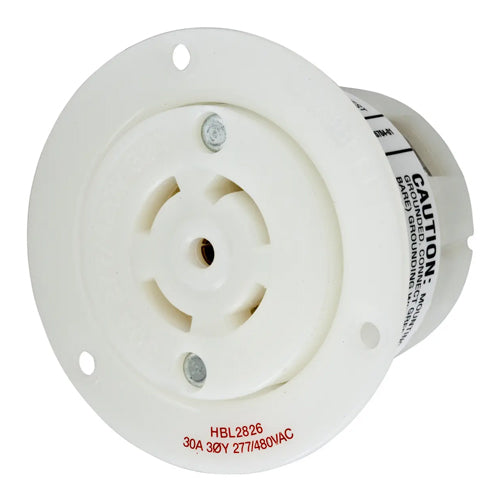

Hubbell HBL2826, Insulgrip Flanged Receptacles, Nylon Casing, Back Wired, 30A 277/480V, L22-30R, 3 Phase, 4-Pole 5-Wire Grounding
Regular price
$141.96
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Amperage Rating | 30A |
| Voltage Rating | 277/480V |
| Nema Rating | L22-30R |
| Phase | 3 Phase WYE |
| Housing | Nylon |
| Contacts | Brass |
| Dimensions | 3.06 in x 3.06 in x 2.27 in |
| Number Of Poles | 4-Pole |
| Number Of Wires | 5-Wire |
| Wire Size | #16 AWG to #8 AWG |
| Operating Temperatures | Maximum Continuous 75°C Minimum -40°C (w/o impact) |
| Certifications and Compliance | Listed to UL 498 Fed.Spec. W-C-596 Certified to CSA C22.2 No.42 |
