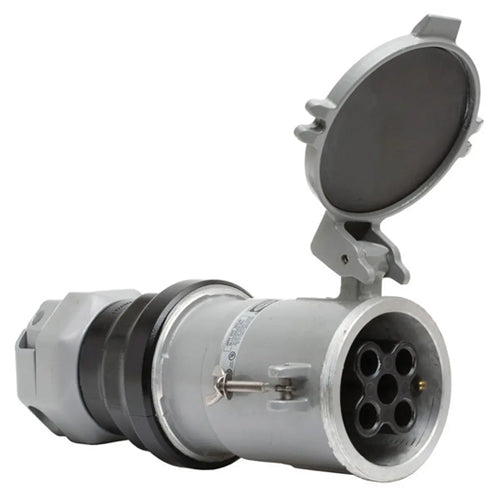

Hubbell HBL3100CS1W, UL 1686 C1 Insulgrip Pin and Sleeve Devices, Watertight Female Connector, 100A 600/250V AC/DC, 2-Pole 3-Wire Grounding Style 1
Regular price
$1,127.32
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- Beryllium copper spring maintains high unit pressure on mating sleeves
- Spring-loaded gasket cover provides 4X seal while the device is not in use
- Pin chamber confines arcing within the interior chamber
| Series | UL 1686 Class 1 Insulgrip |
| Style | Standard Service, Style 1 |
| Type | Watertight Connector |
| Amperage Rating | 100A |
| Voltage Rating | 600V AC/250V DC |
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire |
| Connectivity | Pressure Terminal Screws |
| Housing | Valox® 357 |
| Flammability (Enclosure) | UL 94V-0 and CSA C22.2 No. 0.17 |
| Moisture Resistance | Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94 |
| Operating Temperatures | Max. Continuous 75°C; Min. -40°C w/o impact -25° with impact |
| Certifications and Compliance | UL Standard 1682 CSA Certified to CSA Spec. C22.2 No. 182.1 UL Listed and CSA Certified Type 4X |
