Home » Hubbell HBL4700, Duplex Flush Receptacles, Brown RTP Face, Back and Side Wired, 15A 125V, L5-15R, 2-Pole 3-Wire Grounding
Hubbell

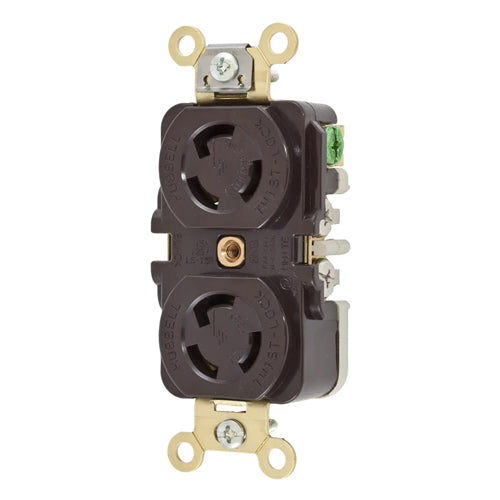

Hubbell HBL4700, Duplex Flush Receptacles, Brown RTP Face, Back and Side Wired, 15A 125V, L5-15R, 2-Pole 3-Wire Grounding

In stock
SKU: HBL4700
$76.04
Ampere & voltage rating
Nema rating
Colour

Use this text to encourage communication or promote sharing on social networks.

You can also add links

  • Reinforced thermoplastic construction
  • Single piece, all brass contacts
  • Single point break-off tabs
  • Mounting strap tabs lock the body and base together
    Amperage Rating 15A
    Voltage Rating 125V
    Nema Rating L5-15R
    Dimensions 3.29 in x 1.70 in x 1.17 in
    Mounting Hardware Screw Mounting
    Phase Single Phase
    Number Of Poles 2-Pole
    Number Of Wires 3-Wire
    Wire Size #18 AWG to #10 AWG
    Connectivity Back and Side Wired
    Operating Temperatures Maximum Continuous 75°C Minimum -40°C (w/o impact)
    Certifications and Compliance Listed to UL 498
    Fed. Spec W-C-596
    Certified to CSA C22.2 No. 42
