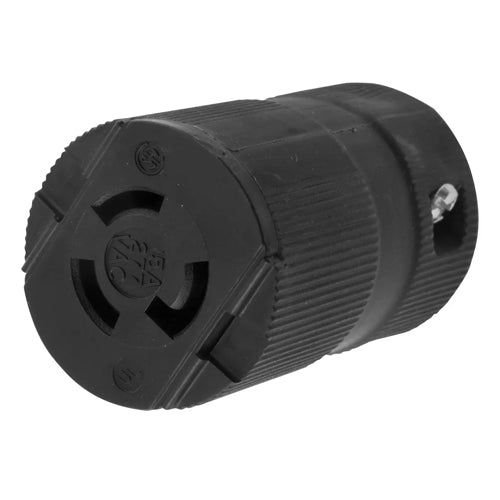

Hubbell HBL4779VBK, Valise Connector Body, Black Nylon, 15A 277V, L7-15R, 2-Pole 3-Wire Grounding
Regular price
$53.18
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- Two captive multiple drive assembly screws
- Totally insulated impact and crush resistant nylon body
- Powerful cord grips prevent conductor slippage and strain on wiring terminals
| Cord Diameter | 0.220"-0.660" (5.6-16.8) |
| Amperage Rating | 15A |
| Voltage Rating | 277V |
| Nema Rating |
L7-15R |
| Housing | Nylon |
| Cable Inserts | Polyphenylene Oxide |
| Contacts | Brass |
| Terminal Screws | #6-32 Brass (Phillips / Slotted / Robertson) |
| Moisture Resistance | IP20 Suitability |
| Dimensions |
1.50 in x 1.50 in x 2.59 in |
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire |
| Connectivity | Pressure Terminal Screws |
| Operating Temperatures | Maximum Continuous 75°C Minimum -40°C (w/o impact) |
| Certifications and Compliance |
Listed to UL 498 Fed. Spec W-C-596 Certified to CSA C22.2 No. 42 |
