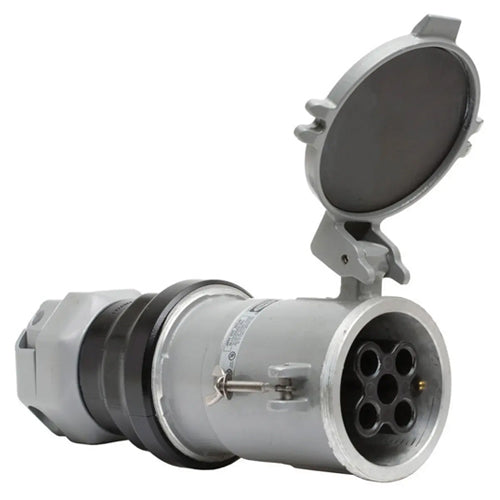

Hubbell HBL5100CS1W, UL 1686 C1 Insulgrip Pin and Sleeve Devices, Watertight Female Connector, 100A 600/250V AC/DC, 4-Pole 5-Wire Grounding Style 1
Regular price
$1,359.35
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- Beryllium copper spring maintains high unit pressure on mating sleeves
- Spring-loaded gasket cover provides 4X seal while the device is not in use
- Pin chamber confines arcing within the interior chamber
| Series | UL 1686 Class 1 Insulgrip |
| Style | Standard Service, Style 1 |
| Type | Watertight Connector |
| Amperage Rating | 100A |
| Voltage Rating | 600V AC/250V DC |
| Number Of Poles | 4-Pole |
| Number Of Wires | 5-Wire |
| Connectivity | Pressure Terminal Screws |
| Housing | Valox® 357 |
| Flammability (Enclosure) | UL 94V-0 and CSA C22.2 No. 0.17 |
| Moisture Resistance | Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94 |
| Operating Temperatures | Max. Continuous 75°C; Min. -40°C w/o impact -25° with impact |
| Certifications and Compliance | UL Standard 1682 CSA Certified to CSA Spec. C22.2 No. 182.1 UL Listed and CSA Certified Type 4X |
