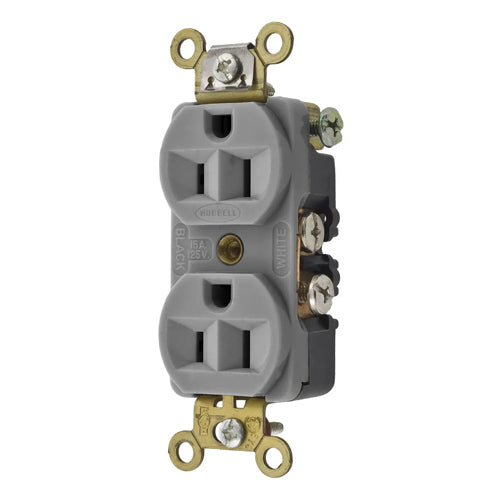

Hubbell HBL5242GY, Extra Heavy Duty Max Compact Duplex Receptacles, Nylon Face, Side Wired only, 15A 125V, 5-15R, 2-Pole 3-Wire Grounding, Gray
Regular price
$25.80
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Mounting Hardware | Screw Mounting |
| Style | Nylon Face |
| Number Of Poles | 2-Pole |
| Nema Rating | 5-15R |
| Dimensions | 3.28 in x 1.33 in x 1.05 in |
| Amperage Rating | 15A |
| Voltage Rating | 125VAC |
| Number Of Wires | 3-Wire |
| Wire Size | #14 AWG to #10 AWG |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Certifications and Compliance |
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
