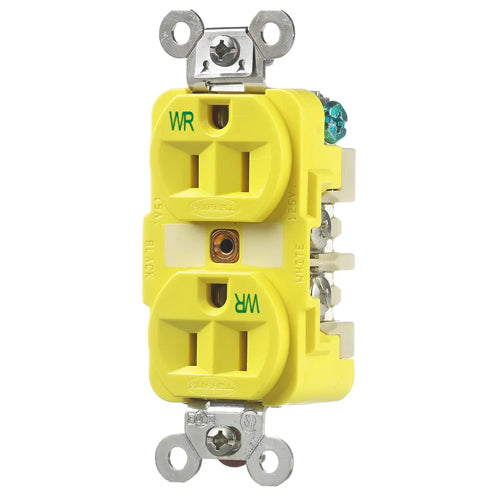

Hubbell HBL52CM62, Extra Heavy Duty Max Duplex Receptacles, Corrosion Resistant, Finder Groove Face, Back and Side Wired, 15A 125V, 5-15R, 2-Pole 3-Wire Grounding, Yellow
Regular price
$77.73
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- Back wired ground terminal allows faster, easier installation
- One-piece brass integral ground strap
- Finder Groove Face
- Deep body design with circuit ID face
- Corrosion resistant
| Mounting Hardware | Screw Mounting |
| Number Of Poles | 2-Pole |
| Nema Rating | 5-15R |
| Dimensions | 3.28 in x 1.65 in x 1.19 in |
| Amperage Rating | 15A |
| Phase | Single Phase |
| Voltage Rating | 125VAC |
| Number Of Wires | 3-Wire |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Certifications and Compliance | Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
