Home » Hubbell HBL560C7W, IEC Pin and Sleeve Devices, Watertight Female Connector, 3-Phase Y, 60A 277/480VAC, 4-Pole 5-Wire Grounding
Hubbell

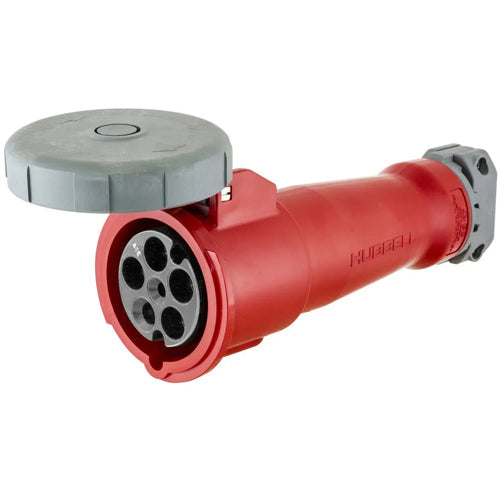

Hubbell HBL560C7W, IEC Pin and Sleeve Devices, Watertight Female Connector, 3-Phase Y, 60A 277/480VAC, 4-Pole 5-Wire Grounding

In stock
SKU: HBL560C7W
$1,017.66
Ampere & voltage rating
Pole
Colour

Use this text to encourage communication or promote sharing on social networks.

You can also add links

  • UL Type 4X, 12 and IP69k environmental ratings
  • Impact and corrosion resistant insulated non-metallic housing
  • Watertight neoprene glad seal to prevent water ingress from entering at cable entrance
  • Sequential contact engagement to prevent a momentary over-voltage
  • Market leading UL witnessed HP ratings
Type Watertight Connector Body
Amperage Rating 60A
Voltage Rating 277/480VAC
Number Of Poles 4-Pole
Number Of Wires 5-Wire
Phase Three Phase
Housing  PBT
Flammability V-0
Ingress Protection TYPE 3R, 3RX, 4X AND IP68, IP69K
Moisture Resistance IEC 60309-1
Operating Temperatures Maximum Continuous 75°C; Minimum - 40°C w/o impact
Certifications and Compliance UL Listed, File E146033
CSA Certified File LR280C
UL Classified to IEC 60309-1 IEC 60309-2
