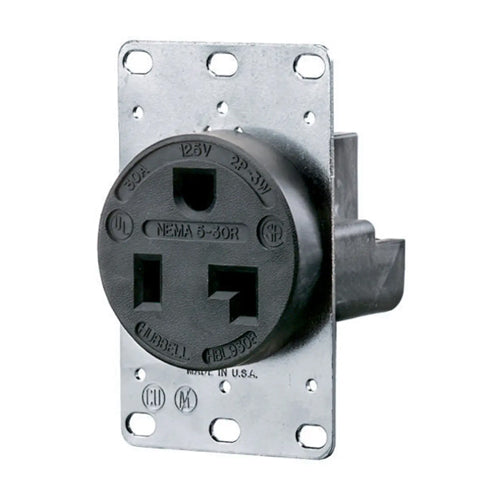

Hubbell HBL9308, Single Flush Receptacle, Reinforced Thermoplastic Polyester Housing, 30A 125V, 5-30R, 2-Pole 3-Wire Grounding, Black
Regular price
$83.02
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- Sequenced contacts assure protection
- Catalog number, ratings and certifications molded in face
- One piece design power and ground contacts
| Item Type | Single |
| Mounting Hardware | Screw Mounting |
| Housing | Reinforced Thermoplastic Polyester |
| Number Of Poles | 2-Pole |
| Nema Rating | 5-30R |
| Amperage Rating | 30A |
| Voltage Rating | 125V |
| Phase | Single Phase |
| Dimensions | 3.28 in x 2.25 in x 2.23 in |
| Number Of Wires | 3-Wire |
| Wire Size | #12 AWG to #4 AWG |
| IP Suitability | IP20 |
| Connectivity | Back and Side Wired |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Certifications and Compliance |
UL Listed File E2186 CSA Certified NEMA® WD-6 Compliant |
