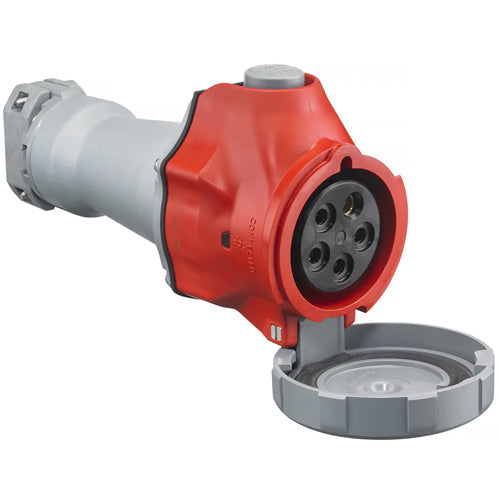

Hubbell HBLS560C6W, Advantage Series Switch-Rated IEC Pin and Sleeve Devices, Watertight Connector, 60/63A 200-415VAC, 4-Pole 5-Wire Grounding
Regular price
$1,295.28
Pickup available at 220 Alden Road
Usually ready in 24 hours
Use this text to encourage communication or promote sharing on social networks.
- Mates with existing installed base of IEC 60309-2 pin and sleeve devices
- Approved as a disconnecting means for motor circuits and branch circuits
- UL Type 4X, 12 and IP69k environmental ratings
- Impact and corrosion-resistant PBT that is color coded by voltage.
- Unswitched ground and power indicating LED lights
| Series |
Advantage Switch-Rated |
| Type | Watertight Connector |
| Amperage Rating | 60/63A |
| Voltage Rating | 200/346-240/415VAC |
| Number Of Poles | 4-Pole |
| Number Of Wires | 5-Wire |
| Housing | PBT |
| Flammability | V-0 |
| Ingress Protection | TYPE 3R,3RX,4X AND IP68,IP69K |
| Moisture Resistance | IEC 60309-1 |
| Operating Temperatures | Maximum Continuous 75°C; Minimum - 40°C w/o impact |
| Certifications and Compliance | UL Listed, File E146033 CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 |
