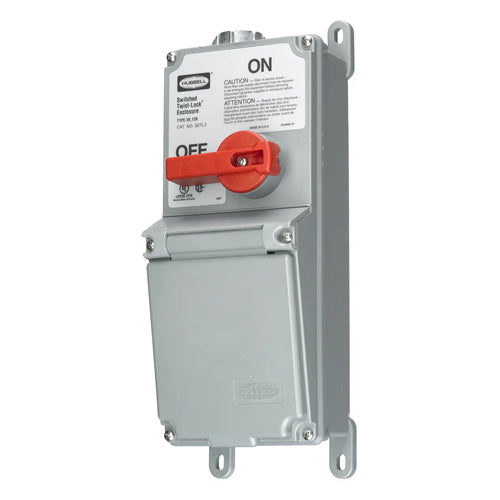

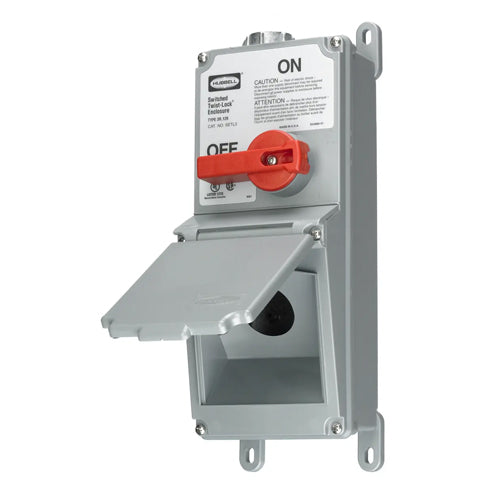

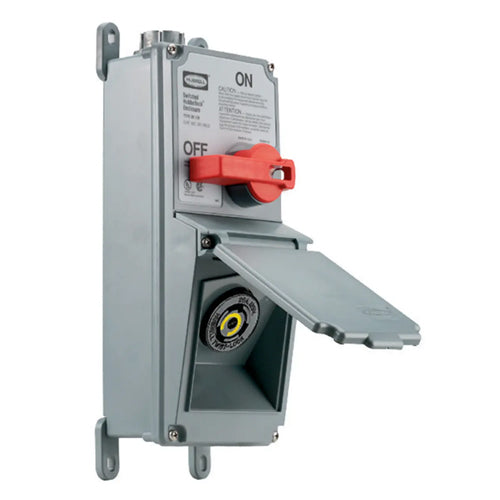

Hubbell SETL3, Switched Safety Enclosure Ready for Twist-Lock Receptacle Addition, Gray
Regular price
$656.69
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Switched Twist-Lock Safety Enclosure Accommodates any NEMA 2 pole, 3 wire to 4 pole, 5 wire Grounding Receptacle (sold separately).
Amperage, voltage, and horsepower ratings will be determined by the choice of the NEMA 20 or 30A Twist-Lock receptacle selected.
- Accommodates 20- or 30-Amp Twist-Lock® Receptacle
- Type 3R Rainproof or 12K Dust-tight
- Molded Valox Resists Abuse, Corrosion and Enhances Safety
- Lockable Handle Meets OSHA Lockout Requirements
| Base | PBT |
| Conduit Hub | Zinc 3/4" watertight |
| Enclosure Gasket | Neoprene |
| Current Interrupting | Certified for current interrupting at full rated current and voltage |
| Dielectric Voltage | Withstands 3,000V minimum |
| Max. Working Voltage | 600V RMS |
| Operations | Mechanical 10,000 cycles; Electrical 6,000 cycles |
| Dimensions | 11.38 in x 4.88 in x 4.5 in |
| Mounting | External fully adjustable feet |
| Moisture Resistance | IP54 suitability |
| Operating Temperature | Maximum continuous +75°C; Minimum continuous -40°C |
| Certifications and Compliance |
Listed to UL Standard CSA Certified Type 3R and 12K Enclosure Rating |
