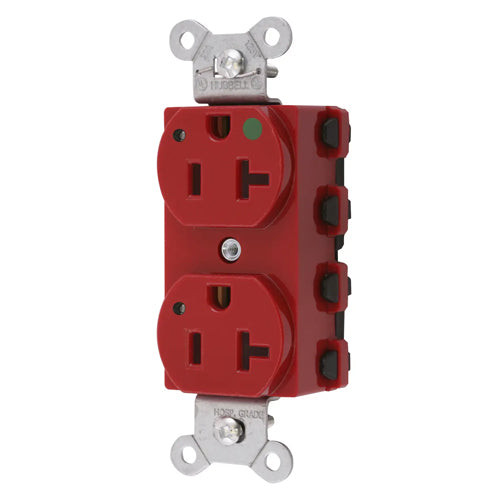

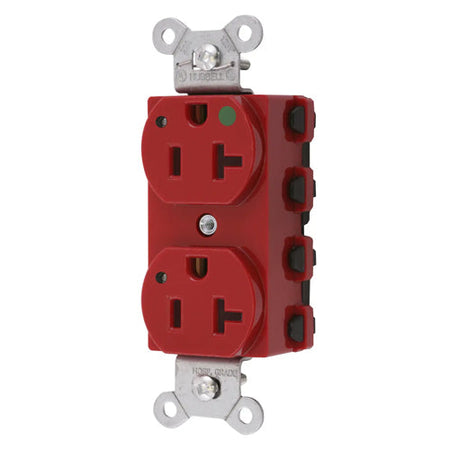

Hubbell SNAP8300RL, SNAPConnect Extra Heavy Duty Duplex Receptacles, Hospital Grade, LED Indicator, Smooth Nylon Face, 20A 125V, 5-20R, 2-Pole 3-Wire Grounding, Red

In stock
Regular price $39.51
Ampere & voltage rating
Nema rating

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Indicator(s) Type Green LED
Item Type Smooth Face
Material Nylon
Number Of Poles 2-Pole
Nema Rating 5-20R
Dimensions 3.28 in x 1.64 in x 1.1 in
Amperage Rating 20A
Voltage Rating 125V
Number Of Wires 3-Wire
Phase Single Phase
Wire Size #12 AWG
IP Suitability IP20
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Certifications and Compliance CSA Certified, C22.2, No. 42 File 285
Fed. Spec. W-C-596
NEMA® WD-6 Compliant
UL Listed to UL498 File No. E2186
