Home » Hubbellock® HBL25250, Receptacle, Black Phenolic Interior, Aluminum Weatherproof Housing, Blue Finish, For FS/FD Box Mounting, 20A 250VDC/30A 600VAC, 4-Pole 5-Wire Grounding
Hubbell

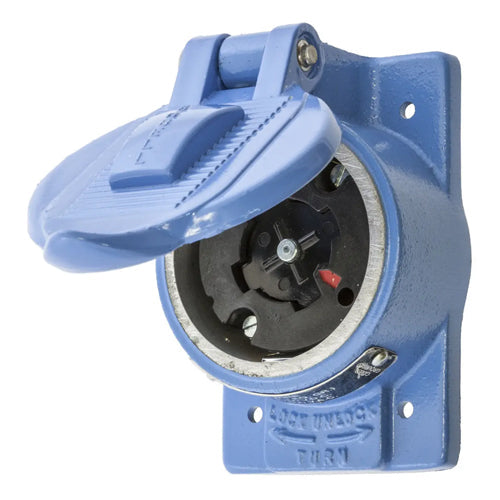

Hubbellock® HBL25250, Receptacle, Black Phenolic Interior, Aluminum Weatherproof Housing, Blue Finish, For FS/FD Box Mounting, 20A 250VDC/30A 600VAC, 4-Pole 5-Wire Grounding

In stock
SKU: HBL25250
$691.50
Ampere & voltage rating
Pole

Use this text to encourage communication or promote sharing on social networks.

You can also add links

  • Spring loaded safety shutter contains arcing when mating or un-mating devices under load
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
  • Metallic housing provides protection from damage in harsh environments
Amperage Rating 20/30A
Voltage Rating 250 VDC/600 VAC
Housing Cast Aluminum
Contacts Brass
Moisture Resistance IP44 Suitability
Dimensions 4.56 in x 3.28 in x 3.67 in
Number Of Poles 4-Pole
Number Of Wires 5-Wire
Wire Size #10 AWG - #6 AWG
Operating Temperatures Maximum Continuous 75°C Minimum -40°C (w/o impact)
Certifications and Compliance Listed to UL Standard
Certified to CSA Standard
