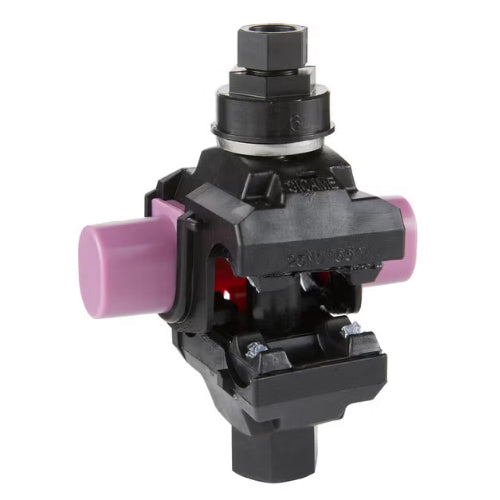

Ideal Industries BTC4/0-10, B-TAP® Insulation Piercing Tap Connector, Run 4/0-3, Tap 2-10 AWG
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Safe, dependable and easy. The Buchanan® B-TAP® Insulation Piercing Connector offers a breakaway torque nut that guarantees a perfect connection every time, no more guesswork. It simply snaps off when UL torque requirements are met. The grease-filled rubber end caps provide superior water and corrosion resistance, while the insulation piercing design eliminates downtime and power interruptions. That translates into a 60% installed cost savings compared to split bolts. Installation is easy – all you need is a standard box, socket, or impact wrench. B-TAP® Connectors can be safely installed on energized systems, eliminating power interruptions and downtime.
- Breakaway torque nut snaps off when UL torque requirements are met
- Second nut remains for easy connector removal
- Self-insulated housing eliminates the need for tape. Safely installs on energized systems
- Grease-filled end cap seals end of conductor for superior weather protection
- Grease-filled boots protect copper teeth from corrosion and prevent arcing
- Hardened copper teeth pierce insulation and bite into conductors
- Rated to 90°C and 600V
- Can be used on Cu-Cu, Al-Al, Cu-Al, and Al-Cu when used in non-tension, insulated applications
- Run 4/0-3 Tap 2-10
| Number of Ports | 2 |
| Conductor Range – Tap | 2-10 |
| Conductor Range – Main/Run | 4/0 to 3 |
| Colour | Black |
| For Wire Type | Solid, Stranded |
| Voltage | 600V |
| Temperature Rating | 194°F(90°C) |
| Warranty | Limited 1 Year |
