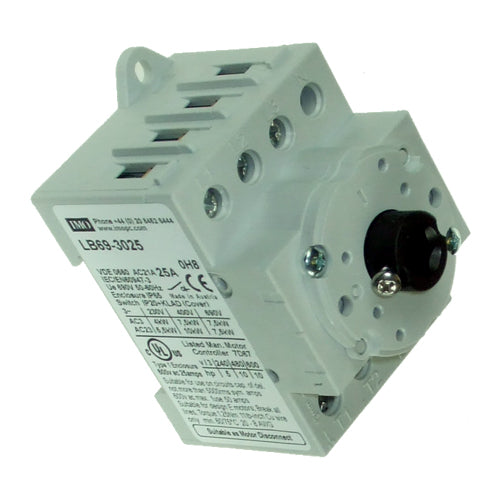

IMO LB69-3025, Base Mount Door Interlock 69 Series AC Disconnect, IP66, 3 Pole, 25A, Enclosed/Interlocked Handle
Regular price
$82.84
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Base Mount Door Interlock, Isolator Body, 3 Pole, 25A, For Use With E69 Shafts And H69 Handles.
| Number of Poles |
3 Pole |
| Rating @ 400V |
25 Amps AC21 (10kW AC23B) |
| Handle Type |
Enclosed / Interlocked Handle |
| Rated Voltage |
600V |
| Nema Rating | 4X |
| Cable Sizes (AWG) |
20-8AWG |
| Cable Size (mm²) |
0.5-10mm² |
| Lockable | Y |
| Mounting | Base Mount |
| IP Rating | IP66 |
| Temperature Range | -40 to +90°C |
| Certifications | CE, UL, cULus |
