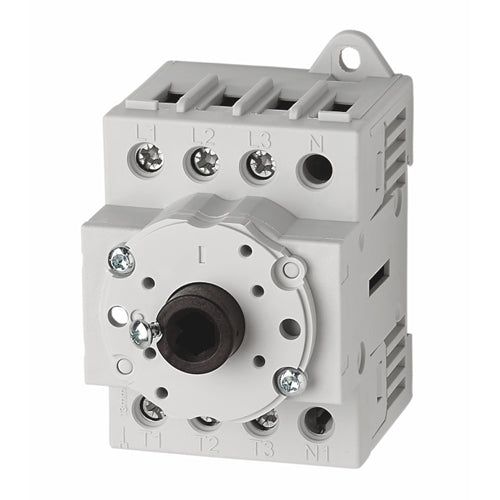

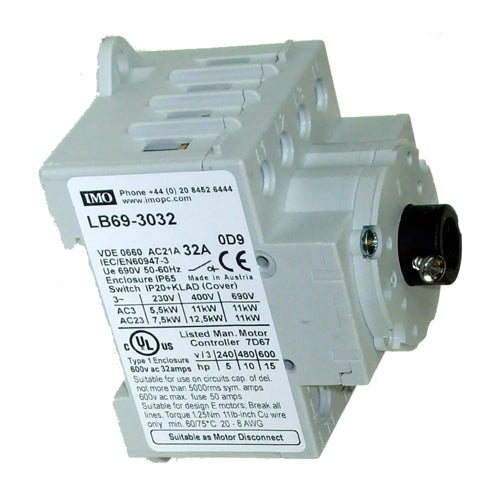

IMO LB69-3032, Base Mount Door Interlock 69 Series AC Disconnect, IP66, 3 Pole, 32A, Enclosed/Interlocked Handle
Regular price
$89.68
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Base Mount Door Interlock, Isolator Body, 3 Pole, 32A, For Use With E69 Shafts And H69 Handles.
| Number of Poles |
3 Pole |
| Rating @ 400V |
32 Amps AC21 (12.5kW AC23B) |
| Handle Type |
Enclosed / Interlocked Handle |
| Rated Voltage |
600V |
| Nema Rating | 4X |
| Cable Sizes (AWG) |
20-8AWG |
| Cable Size (mm²) |
0.5-10mm² |
| Lockable | Y |
| Mounting | Base Mount |
| IP Rating | IP66 |
| Temperature Range | -40 to +90°C |
| Certifications | CE, UL, cULus |
